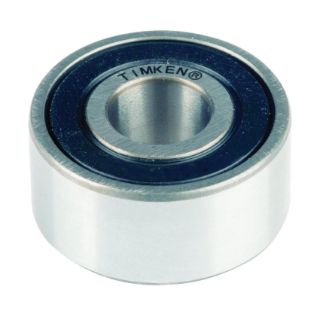

63005-2RS TKN

Name: 63005-2RS TKN
Brand: Timken
SKU: 63005-2RS TKN
Price: 84.93 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

63005-2RS

Product Name:

63005-2RS TKN

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$84.93 / EA

Description

Brand Name

Timken®

Type

Wide Straight Bore

Description

Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability and capability to run at high speeds. Most bearings in the 6000 series up to 60 mm bore can be made available in stainless steel (AISI 440C material) upon request.

Timken®, 63005-2RS, ISO Deep Groove Radial Ball Bearing, Wide Straight Bore, Series: 63000, 17 mm Bore, 47 mm OD, 1 Rows, 14 mm Width, Dual Contact Seal Closure, 2270.57 lb Dynamic/1303.892 lb Static Load, Steel Bearing, 17000 rpm Grease/25000 rpm Oil Maximum, -40 to 120 deg C

Application

For electric motor

Standards

ABEC 1 Standard

Features

Super finished raceways
Quiet operations
ISO standard interchangeable dimensions
Wide series design has a larger width, relative to standard designs
Contact seals offer superior lubricant retention and bearing protection from contaminants
Premium grease for high performance, low torque and less noise
C0 normal internal clearance

Specifications

Bearing Material:	Steel
Bore Diameter:	17 mm
Cage Material:	Steel
Closure Type:	Dual Contact Seal
Load Capacity:	2270.57 lb Dynamic/1303.892 lb Static
Maximum Speed:	17000 rpm Grease/25000 rpm Oil
Number of Rows:	1
Outside Diameter:	47 mm
Series:	63000
Temperature Rating:	-40 to 120 deg C
Width:	14 mm
