Actual Product May Vary From Image

6313-2Z FAG

Name: 6313-2Z FAG
Brand: INA
SKU: 6313-2Z FAG
Price: 298.65 USD
Availability: OutOfStock

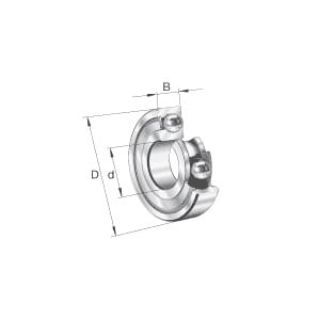

FAG 6313-2Z 63..-2Z Deep Groove Ball Bearing, 65 mm Dia Bore, 140 mm OD, 1 Rows, 33 mm W, 100000 N Dynamic/60000 N Static/3900 N Fatigue Load

Manufacturer: INA

Manufacturer part number: 6313-2Z

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$298.65

Qty:

Product Details

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 63..-2Z, 65 mm Bore, 140 mm OD, 1 Rows, 33 mm Width, Double Shield Closure, 100000 N Dynamic/60000 N Static/3900 N Fatigue Load, Steel Bearing, Metal Seal, Steel Cage, 6200 rpm Maximum, -30 to 120 deg C, Uncoated

Standards

Meets to DIN 625-1

Features

Gap seal on both sides

Specifications

Bearing Material:	Steel
Bore Diameter:	65 mm
Cage Material:	Steel
Closure Type:	Double Shield
Finish:	Uncoated
Load Capacity:	100000 N Dynamic/60000 N Static/3900 N Fatigue
Maximum Speed:	6200 rpm
Number of Rows:	1
Outside Diameter:	140 mm
Seal Material:	Metal
Series:	63..-2Z
Temperature Rating:	-30 to 120 deg C
Width:	33 mm
