640-8MGT-20 GAT

Picture of 640-8MGT-20 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Rubber
Manufacturer part number:
640-8MGT-20
product.name:
640-8MGT-20 GAT
CBT Inventory
4
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$43.28 / EA

Description

Brand Name

Gates®

Description

Reduce both acquisition costs and transaction costs by designing with PowerGrip® GT®3. The PowerGrip® GT®3 belt has two times the rating of competitive RPP® belts and its predecessors PowerGrip® GT® and HTD® belts. PowerGrip® GT®3 drive systems offer the largest selection of belts and sprockets in the industry. At reduced widths, PowerGrip® GT®3 belts can be used as a direct replacement for most 8 mm and 14 mm pitch standard rubber RPP® and HTD® synchronous belts.
Gates® PowerGrip® GT®3 Synchronous Belt, Series: 9356, 80 Teeth, 8 mm Pitch, 640 mm Overall Length, 20 mm Width, Neoprene, Fiberglass Reinforced Material

Application

HVAC, Textile, Printing, Machine Tools, Food Processing, Conveyors, Packaging, Agriculture, Pumps, Compressors, Centrifuges, Laundry, Pulp and Paper

Standards

ISO 9563

Features

  • Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
  • Nylon tooth facing provides a durable wear surface for long service life
  • Gates® patented tooth profile is designed for use with a specific sprocket groove profile
  • The sprocket groove-belt tooth combinations increases capacity, while improving registration
  • Eliminates lubrication and re-tensioning to reduce maintenance and labor as compared to roller chain drives
  • A single twist cord helps prevent the belt from moving downward on vertical shaft ACHE applications
  • Neoprene body provides protection against grime, grease, oil and moisture
  • PowerGrip® GT®3 has more tooth ratchet resistance than HTD®

Specifications

Country of Origin:US
Material:Neoprene
Number of Teeth:80
Overall Length:640 mm
Pitch:8 mm
Reinforced Material:Fiberglass
Series:9356
Width:20 mm

Products Specifications

Brand Name
Gates
Pitch
8MGT

Customers who bought this item also bought

Picture of 6309 ZZ NAC

6309 ZZ NAC

MFG: Nachi Bearings
MFG#:6309ZZEC3
Info:NACHI 6309ZZEC3 6300 Deep Groove Ball Bearing, 45 mm Dia Bore, 100 mm OD, 1 Rows, 25 mm W, 53000 N Dynamic/32000 N Static Load
$ -.--
Picture of 480-8MGT-20 GAT

480-8MGT-20 GAT

MFG: Gates Rubber
MFG#:480-8MGT-20
Info:Gates® PowerGrip® GT®3 480-8MGT-20 Synchronous Belt, 20 mm W, 480 mm OAL, 8 mm Pitch, 60 Teeth, Neoprene
ATTENTION: This item is subject to a price increase beginning 01/2025. Contact your Account Manager for specific details.
$ -.--

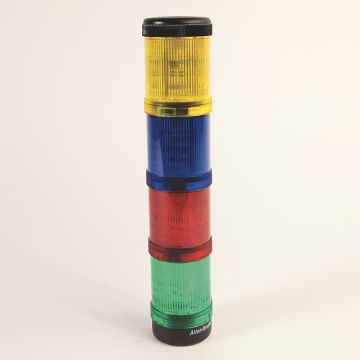

Picture of 855ECB12Y3Y8Y4 AB
