6813 ZZ NAC

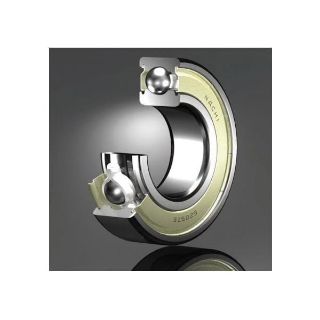

NACHI 6813ZZE 6800 Deep Groove Ball Bearing, 65 mm Dia Bore, 85 mm OD, 1 Rows, 10 mm W, 11900 N Dynamic/11500 N Static Load
Manufacturer: Nachi Bearings
Manufacturer part number: 6813ZZE
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

NACHI

Description

Single-row deep groove ball bearings are the most common bearing type in the world due to their versatility and performance. These bearings are available in a variety of seal, shield and snap-ring arrangements. Bearings with seals or shields are standardized and already contain the proper amount of grease. Open bearings will require lubrication. These bearings can sustain radial and/or axial loads and because of their simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.
NACHI Deep Groove Ball Bearing, Series: 6800, 65 mm Bore, 85 mm OD, 1 Rows, 10 mm Width, Double Shield Closure, 11900 N Dynamic/11500 N Static Load, Steel Bearing, Stamped Steel Cage, 7500 rpm Grease/8700 rpm Oil Maximum, 250 deg F

Application

Electric Motors, Automotive Alternators, Automotive Starters, Compressors, Blowers and Transmissions

Features

  • Excellent high speed capability
  • Good radial load capacity
  • Good axial load capacity in both directions
  • Low torque requirements during startup and operation
  • Low noise
  • Little/no maintenance required
  • Longer life - adopted NACHI original seal design to prevent contamination and grease leakage, contains special grease for wider temperature ranges and longer life
  • Smooth and quiet operation - the precision level of our bearing components has been enhanced to ensure smooth and quiet operation

Specifications

Bearing Material:Steel
Bore Diameter:65 mm
Cage Material:Stamped Steel
Closure Type:Double Shield
Load Capacity:11900 N Dynamic/11500 N Static
Maximum Speed:7500 rpm Grease/8700 rpm Oil
Number of Rows:1
Outside Diameter:85 mm
Series:6800
Temperature Rating:250 deg F
Width:10 mm
