6CH303 MSG

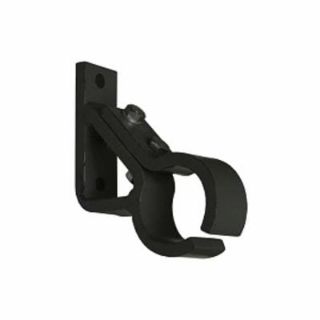

Martin 6CH303 Conveyor Hanger, 30 Style, 6 in Dia Conveyor, 1-1/2 in Coupling
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 6CH303
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$99.66

Product Details

Brand Name

Martin

Description

No. 30 hangers are designed for side mounting within the conveyor trough on the non-carrying side and permit a minimum of obstruction of material flow. Available with friction type bearing.
Martin Conveyor Hanger, 30 Style, 6 in Conveyor Diameter, 1-1/2 in Coupling, 3-1/8 in Mounting Hole Center, 0.313 x 1.25 in Bolt, 1-1/2 in Top Frame Width, 3/8 in Top Frame Thickness, 2 Mounting Bolts, Steel

Standards

CEMA Standard | PTDA Certified

Specifications

Bolt Size:0.313 x 1.25 in
Conveyor Diameter:6 in
Country of Origin:US
Coupling Size:1-1/2 in
Material:Steel
Mounting Hole Center:3-1/8 in
Number of Mounting Bolts:2
Style:30
Top Frame Thickness:3/8 in
Top Frame Width:1-1/2 in
