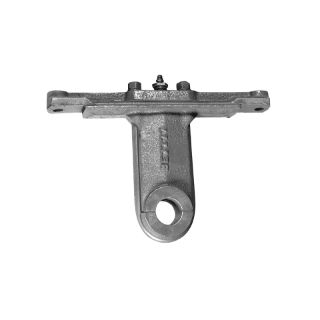

Actual Product May Vary From Image

6CHU19B3 MSG

Name: 6CHU19B3 MSG
Brand: Martin Sprocket & Gear
SKU: 6CHU19B3 MSG
Price: 68.39 USD
Availability: OutOfStock

Martin 6CHU19B3 Conveyor Hanger U-Bolt, 19B Style, 6 in Dia Conveyor, 1-1/2 in Coupling

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 6CHU19B3

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$68.39

Qty:

Product Details

Brand Name

Martin

Description

The No. 19B hanger is similar in construction to the No. 18B except they are mounted on top of the trough angles. Built-in ledges provide supports for the ends of the cover. They are streamlined in design and permit free passage of the material. Top half is furnished with bronze bearing. Bottom half can be supplied in oil impregnated wood, hard iron, or other special caps may be furnished on request.

Martin Conveyor Hanger U-Bolt, 19B Style, 6 in Conveyor Diameter, 1-1/2 in Coupling, 9/16 in Bolt, 9-7/8 in Top Frame Length, 1-7/8 in Top Frame Width, 7/8 in Top Frame Thickness, Steel

Standards

CEMA Standard

Features

Hanger U-bolts are used to hold the bearing in place on a style 19B hanger
Laser cut flat pieces to ensure consistent finish and high quality

Specifications

Bolt Size:	9/16 in
Conveyor Diameter:	6 in
Country of Origin:	US
Coupling Size:	1-1/2 in
Material:	Steel
Style:	19B
Top Frame Length:	9-7/8 in
Top Frame Thickness:	7/8 in
Top Frame Width:	1-7/8 in
