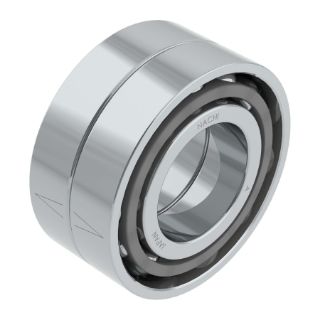

7006CYDUP4 NAC

Precision Angular Contact Ball Bearing. Balls and the inner ring and outer ring raceways are designed for contact in a specific contact angle, which means this type of bearing is suitable for composite loads (axial load and radial load). The contact angle means that axial force components are generated when a radial load is applied, so these are normally used in pairs at either end of a shaft. A contact angle of 15° is best for high speed, while a contact angle of 25° is better for axial loads.

NACHI Precision Angular Contact Ball Bearing, Series: 7000C, 30 mm Bore, 55 mm OD, 1 Row, 13 mm Width, 15 deg Contact Angle, Open Closure, 16 kN Dynamic/11.1 kN Static Load, Steel Bearing, Polyamide Cage, 27400 rpm Grease/37500 rpm Oil Maximum, 250 deg F
