7204BG KOY

Name: 7204BG KOY
Brand: Koyo Bearings
SKU: 7204BG KOY
Availability: InStock

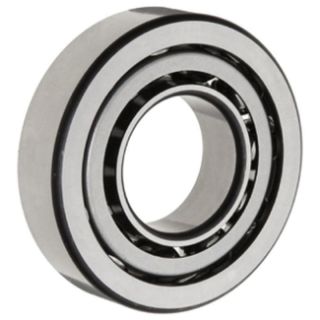

Actual Product May Vary From Image

Product Details

Manufacturer:

Koyo Bearings

Manufacturer part number:

7204B-5G C3FY

Product Name:

7204BG KOY

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Koyo

Type

Type G Caged Light

Description

Due to having contact angles, the angular contact ball bearing is suitable for applications demanding high accuracy and high rotational speed and is capable of withstanding combined radial and axial loads.

Koyo Angular Contact Ball Bearing, Type G Caged Light, Series: 72C, 20 mm Bore, 47 mm OD, 1 Row, 14 mm Width, 40 deg Contact Angle, Open Closure, 17.6 kN Dynamic/8.4 kN Static Load, Machined Copper Alloy Cage, 10000 rpm Grease/13000 rpm Oil Maximum

Standards

ABEC1 Class P0

Features

Bearings with a larger contact angle feature superior axial load resistance
Angular contact ball bearings are often preloaded to enhance their rigidity and rotating performance
Equal stand-out is provided on both sides of the ring of angular contact ball bearing (C2 clearance is used)

Specifications

Bore Diameter:	20 mm
Cage Material:	Machined Copper Alloy
Closure Type:	Open
Contact Angle:	40 deg
Load Capacity:	17.6 kN Dynamic/8.4 kN Static
Maximum Speed:	10000 rpm Grease/13000 rpm Oil
Number of Rows:	1
Outside Diameter:	47 mm
Series:	72C
Width:	14 mm
