Actual Product May Vary From Image

7205CYDUP4 NAC

Name: 7205CYDUP4 NAC
Brand: Nachi Bearings
SKU: 7205CYDUP4 NAC
Price: 618.56 USD
Availability: InStock

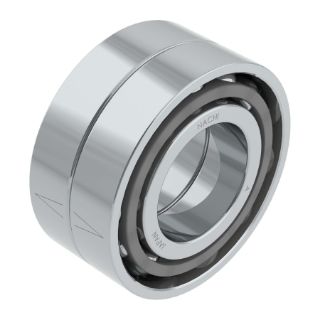

NACHI 7205CYDUP4 7200C Precision Angular Contact Ball Bearing, 25 mm Dia Bore, 52 mm OD, 1 Row, 15 mm W, 15 deg, 16.7 kN Dynamic/10.3 kN Static Load

Manufacturer: Nachi Bearings

Manufacturer part number: 7205CYDUP4

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$618.56

Qty:

Product Details

Brand Name

NACHI

Description

NACHI Precision Angular Contact Ball Bearing, Series: 7200C, 25 mm Bore, 52 mm OD, 1 Row, 15 mm Width, 15 deg Contact Angle, Open Closure, 16.7 kN Dynamic/10.3 kN Static Load, Steel Bearing, Polyamide Cage, 30000 rpm Grease/41500 rpm Oil Maximum, 250 deg F

Application

For high speed precision machining and precision spindle support

Standards

ECCN: EAR99

Features

The raceways of both the inner and outer rings of this bearing type are made with a set contact angle
Single row angular contact ball bearings can sustain radial, axial or composite loads, however any axial load must be in one direction
Larger contact angle type has better axial load capability
Small contact angle type has higher permissible speed capability
This bearing type is generally used in adjacent positions

Specifications

Bearing Material:	Steel
Bore Diameter:	25 mm
Cage Material:	Polyamide
Closure Type:	Open
Contact Angle:	15 deg
Country of Origin:	JP
Load Capacity:	16.7 kN Dynamic/10.3 kN Static
Maximum Speed:	30000 rpm Grease/41500 rpm Oil
Number of Rows:	1
Outside Diameter:	52 mm
Series:	7200C
Temperature Rating:	250 deg F
Width:	15 mm
