737DM1T24 APN

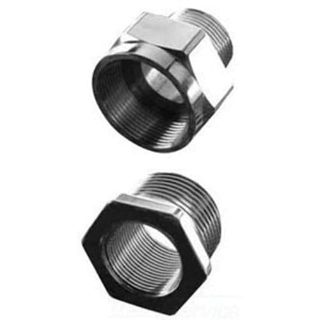

Appleton® 737DM1T24 Threaded Cable Gland Adapter, 3/4 in Interior Thread, M16 Exterior Thread, -60 to 100 deg C Operating, 316L Stainless Steel
Manufacturer: Appleton
Manufacturer part number: 737DM1T24
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$349.36

Product Details

Brand Name

Appleton®

Type

Threaded

Description

The 737 Series provides a wide range of thread conversion adaptors and reducers for hazardous area applications. They are used to connect cable entry devices and equipment having dissimilar threads. Care should be taken to ensure that a suitable sealing gasket is also selected and installed, where applicable, to ensure that an effective seal is made at the entry, thereby maintaining the integrity of the enclosure or equipment IP rating.
Appleton® Cable Gland Adapter, Threaded, Series: 737, 3/4 in Interior Thread, M16 Exterior Thread, -60 to 100 deg C Operating, 316L Stainless Steel

Application

For hazardous locations, used to connect cable entry devices and equipment having dissimilar threads

Standards

UL886/1203 File No. E60079-0/E60079-1/E60079-7 | CSA C22.2 No. 30 | CAN/CSA E60079-0/E60079-1/E60079-7 | cCSAus 113642 | Zone 1, 2, 21, 22 ATEX/IECEx | NEC/CEC Certified

Features

Ex d/Ex e/Ex nR triple certification

Specifications

Country of Origin:GB
Exterior Thread Size:M16
Interior Thread Size:3/4 in
Material:316L Stainless Steel
Operating Temperature:-60 to 100 deg C
Series:737
