7406-B-XL-MP FAG

Name: 7406-B-XL-MP FAG
Brand: INA
SKU: 7406-B-XL-MP FAG
Price: 252.09 USD
Availability: OutOfStock

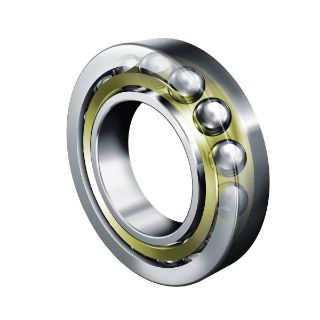

Actual Product May Vary From Image

Product Details

Manufacturer:

INA

Manufacturer part number:

7406-B-XL-MP

Product Name:

7406-B-XL-MP FAG

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$252.09 / EA

Description

Brand Name

FAG

Description

Single-row angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet metal or brass cages. The raceways of the inner and outer rings are offset from each other along the bearing axis. The bearings are available in open and sealed designs. Their angular adjustment facility is very limited.

FAG Angular Contact Ball Bearing, Series: 74-B, 30 mm Bore, 90 mm OD, 1 Rows, 23 mm Width, 40 deg Contact Angle, Open Closure, 51000 N Load, Brass Cage, 13100 rpm Maximum

Features

Single row angular contact ball bearings are particularly suitable where bearing arrangements must support combined loads
Moderate to high axial loads are present on one side
The bearing arrangement must be axially clearance-free or preloaded
High speeds are required under higher radial and axial loads
X-life design
51000 N dynamic/30500 N static

Specifications

Bore Diameter:	30 mm
Cage Material:	Brass
Closure Type:	Open
Contact Angle:	40 deg
Country of Origin:	DE
Load Capacity:	51000 N
Maximum Speed:	13100 rpm
Number of Rows:	1
Outside Diameter:	90 mm
Series:	74-B
Width:	23 mm
