7825405 THO

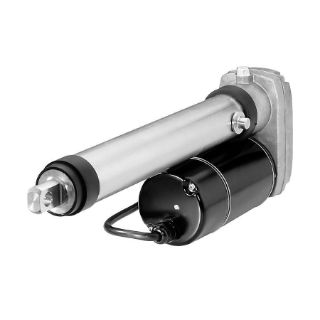

Thomson® Electrak® PPA-AC 7825405 Heavy Duty Linear Actuator With AC Motor, 1500 lb Dynamic/3000 lb Static Load, 12 in Max Stroke, 0.17 in/s Full Load and No Load Max, 30 % Duty Cycle, 115 VAC
Manufacturer: Thomson Industries
Manufacturer part number: 7825405
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Thomson®

Type

Heavy Duty

Description

Electrak® PPA-AC performance Pak actuators are strong, heavy duty units that can run at higher duty cycles. Incorporating a highly efficient ball screw drive system, these actuators are designed for mobile applications with a wide selection of options and standard trunnion mounting.
Thomson® Electrak® PPA-AC Linear Actuator, Heavy Duty, 1500 lb Dynamic/3000 lb Static Load, 12 in Maximum Stroke, 0.17 in/s Full Load and No Load Maximum, 30 % Duty Cycle, 115 VAC, 0 to 2 A, 16.8 in Retracted Length, 23.7 in L x 3.125 in W Dimensions

Application

Mobile-off-Highway, Turf and Garden, Energy Alternatives, Industrial, Ventilation, Process Control Equipment, Health, Fitness, Office, Domestic and Entertainment Equipments

Standards

CE Certified | RoHS Compliant

Features

  • Overload clutch for mid and end of stroke protection
  • Versatile actuator with high duty cycle
  • Auto reset thermal switch motor protection
  • Anti-coast brake
  • No bellows
  • -15 to 150 deg F operating temperature
  • 19-1/2 in L cable with flying leads

Includes

Encoder

Specifications

Amperage Rating:0 to 2 A
Country of Origin:US
Dimensions:23.7 in L x 3.125 in W
Duty Cycle:30 %
Load Capacity:1500 lb Dynamic/3000 lb Static
Maximum Speed:0.17 in/s Full Load and No Load
Maximum Stroke:12 in
Retracted Length:16.8 in
Voltage Rating:115 VAC
