Actual Product May Vary From Image

840ST ARL

Name: 840ST ARL
Brand: Arlington
SKU: 840ST ARL
Price: 1.09 USD
Availability: InStock

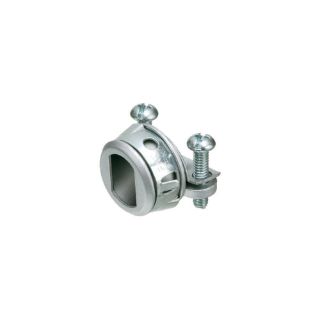

Arlington SNAP-TITE® 840ST 2-Screw Straight Cable Connector With Spring Steel Clip, Round End Stop, 3/8 in Trade, 1/2 in Knockout, 0.225 to 0.612 in Cable Openings, Die Cast Zinc

Manufacturer: Arlington

Manufacturer part number: 840ST

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	415	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.09

Qty:

Product Details

Brand Name

Arlington

Type

2-Screw Straight

Description

Arlington SNAP-TITE® Cable Connector, 2-Screw Straight, 3/8 in Trade, 1/2 in Knockout, Cable Openings: 0.225 to 0.612 in, 1 Conductor, Aluminum/Steel/Flex/MC/SC/MCI-A/AC/NM Cable, Clamp Screw/Snap-In Connection, Die Cast Zinc, Silver, 0.88 in L x 0.876 in W x 0.876 in H Dimensions

Application

For flexible conduits applications

Standards

CSA File No. LR49636 | UL File No. E28474

Features

Connector with spring setscrew for securing aluminum and steel cable
Snaps into knockout with spring steel clip
Concrete tight when taped

Specifications

Cable Openings:	0.225 to 0.612 in
Cable Type:	Aluminum/Steel/Flex/MC/SC/MCI-A/AC/NM
Color:	Silver
Connection Type:	Clamp Screw/Snap-In
Country of Origin:	US
Dimensions:	0.88 in L x 0.876 in W x 0.876 in H
Knockout Size:	1/2 in
Material:	Die Cast Zinc
Number of Conductors:	1
Trade Size:	3/8 in
