8761 BLN

Name: 8761 BLN
Brand: Omni Cable
SKU: 8761 BLN
Availability: InStock

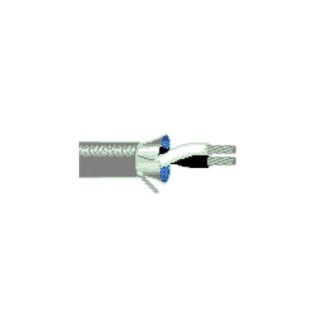

Actual Product May Vary From Image

Product Details

Manufacturer:

Omni Cable

Manufacturer part number:

8761

Product Name:

8761 BLN

CBT Inventory

589

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Belden® by Omni Cable

Type

Multi-Conductor Shielded Single Pair Non-Plenum

Description

Belden® by Omni Cable Cable, Multi-Conductor Shielded Single Pair Non-Plenum, 300 VAC, 2.9 A, 1 Pair Conductors, Stranded Tinned Copper Conductor, 22 AWG Conductor, 0.175 in OD, 7/30 Strands, 16 Ohm Resistance, Polyethylene Insulation, PVC Jacket, -20 to 60 deg C

Standards

UL Style 2092 | EU Directive 2011/65/EU (ROHS II), 2000/53/EC (ELV), 2002/95/EC (RoHS), 2002/96/EC (WEEE) | EU CE Certified | RoHS Compliant | UL1685 Listed

Features

Aluminum foil polyester tape with shorting fold outer shield material
27 lb maximum recommended pulling tension
1-3/4 in minimum bending radius/minor axis
64 Ohm nominal characteristic impedance, 0.2 uH/ft nominal inductance, 24 pF/ft nominal capacitance conductor to conductor
47 pF/ft nominal capacitance conductor to other conductor and shield

Specifications

Amperage Rating:	2.9 A
Conductor Size:	22 AWG
Conductor Type:	Stranded Tinned Copper
Insulation Material:	Polyethylene
Jacket Material:	PVC
Number of Conductors:	1 Pair
Outside Diameter:	0.175 in
Resistance:	16 Ohm
Strands:	7/30
Temperature Rating:	-20 to 60 deg C
Voltage Rating:	300 VAC
