884030K05M010 WOO

Name: 884030K05M010 WOO
Brand: Molex/Woodhead
SKU: 884030K05M010 WOO
Price: 47.56 USD
Availability: InStock

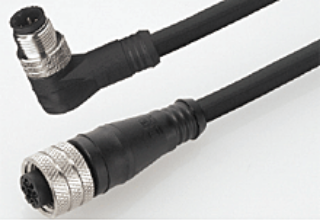

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

884030K05M010

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

$47.56 / EA

Description

Brand Name

Brad®

Type

Double End

Description

Brad® Micro-Change® Cordset, Double Ended, Series: 120066, Straight Female x Straight Male Connector, M12 Connector, TPE, PLTC-ER Cable, 3.28 ft Cable Length, TPE Cable, 4 Pole, Single Keyway, 250 VAC/VDC, 4 A

Application

Construction and Mining Equipment, Machine Lighting, Ground Vehicle Networks, Automated Assembly Equipment, Conveyor Systems and Material Handling

Standards

CSA LR6837 | UL E152210 | Prop65: This product can expose you to Lead and its compounds, known to the State of California to cause Cancer, Developmental toxicity and Reproductive toxicity. For more information go to www.P65Warnings.ca.gov

Features

M12 design meets IEC specifications
Ideal for class 2 power and network circuit applications
Provides a longer-lasting, high performance electrical contact
Prevents the coupler from loosening even under extreme vibration
Water-tight panel-mount design
22 AWG yellow cable
Copper alloy contact, nickel plated brass coupling nut, fluoro-elastomer O-ring, Gold over nickel plating mating
0.209 in cable diameter
-25 to 80 deg C operating temperature

Specifications

Amperage Rating:	4 A
Cable Length:	1 m
Cable Material:	TPE
Cable Type:	PLTC-ER
Connector Material:	TPE
Connector Size:	M12
Connector Type:	Straight Female x Straight Male
Country of Origin:	MX
IEC Rating:	IEC 60664
Keyway:	Single
NEMA Rating:	NEMA IP67
Number of Poles:	4
Series:	120066
Voltage Rating:	250 VAC/VDC
Wire Pin Colors:	Black/Blue/Brown/White
