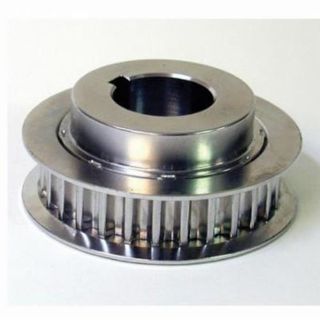

Actual Product May Vary From Image

8MX-36S-36 GAT

Name: 8MX-36S-36 GAT
Brand: Gates Rubber
SKU: 8MX-36S-36 GAT
Price: 236.85 USD
Availability: InStock

Gates® Poly Chain® GT®2 8MX-36S-36 Synchronous Sprocket, 1/2 to 1-11/16 in Taper-Lock® Bore, 3.546 in OD, 36 Grooves, 3.609 in Dia Pitch, 1.86 in W Face

Manufacturer: Gates Rubber

Manufacturer part number: 8MX-36S-36

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Note

$236.85

Qty:

Product Details

Brand Name

Gates®

Description

Poly Chain GT sprockets use the tooth profile designed and developed by Gates and function with Gates Poly Chain GT belts in all existing constructions. These sprockets are statically balanced to make sure the entire belt drive is as safe as possible. Furthermore, they are manufactured, specified, and tested to perfectly support the full power capabilities of the Gates Poly Chain belt product range. Belts and sprockets used together get the best out of your belt drive: maximum performance, prolonged antistatic properties and optimal lifetime.

Gates® Poly Chain® GT®2 Synchronous Sprocket, Series: 7718, Taper-Lock® Bore, 1/2 to 1-11/16 in Bore Dia, 3.546 in Outside Dia, 3.609 in, 36 Grooves, 8 mm Pitch, 1.86 in Face Width, 4.01 in Flange Dia, 2.65 in Hub Dia, 1610 Bushing, For Use With: 36 mm W Poly Chain® Belt, Ductile Iron

Features

Full split in bushing allows easy installation and removal
Poly Chain® GT®2 sprockets keep overhung load below manufacturers recommendation
Precise sprocket design produces positive, press fit to shaft
Sprockets are precision manufactured and static balanced
Smaller, narrower sprockets save shaft space, keep the load closer to bearing and extend life of reducer

Specifications

Bore Diameter:	1/2 to 1-11/16 in
Bore Type:	Taper-Lock®
Bushing Type:	1610
Country of Origin:	US
Face Width:	1.86 in
Flange Diameter:	4.01 in
Hub Diameter:	2.65 in
Material:	Ductile Iron
Number of Grooves:	36
Outside Diameter:	3.546 in
Pitch:	8 mm
Pitch Diameter:	3.609 in
Series:	7718
Suitable For Use With:	36 mm W Poly Chain® Belt
