A3081807 LST

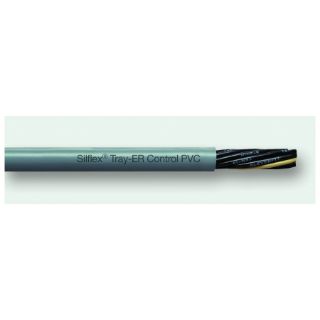

Picture of A3081807 LST
Actual Product May Vary From Image

Product Details

Manufacturer:
Lutze
Manufacturer part number:
A3081807
Product Name:
A3081807 LST
CBT Inventory
500
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
500
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
$2.07 / EA

Description

Brand Name

Silflex®

Type

Tray-ER Unshielded

Description

LUTZE SILFLEX® Control Tray Cable, Tray-ER Unshielded, Series: A308, 600/1000 V, 7 Conductors, Stranded Bare Copper Conductor, 18 AWG Conductor, 0.373 in OD, 19/30 Strands, Nylon/PVC Insulation, PVC Jacket, Gray Jacket, -40 to 90 deg C Static

Application

For machine tools, machine and plant construction, HVAC technology, assembly and production lines and other industrial applications

Standards

Article 336/392/501 | CE Certified | cUL TC and CIC FT4 | DP-1 | REACH Compliant | RoHS Compliant | NEC Class 1 Division 2 | TC-ER-JP Approved | UL Recognized | UL Type MTW/1277 | UL Recognized | UL AWM Style 20886 | WTTC Approved

Features

  • Flexible control and tray cable for stationary applications
  • Multi-conductor cable for tray and control applications, with exposed run (open wiring) approval
  • Crush impact-resistant
  • Gas/vaportight sheath per UL 1277
  • Non-wicking fillers
  • Sunlight-resistant
  • Flame retardant
  • Direct burial (18 AWG and larger)
  • Talc and silicone-free
  • TC-ER for use on machines and in open cable ducts
  • WTTC - wind turbine tray cable for use in wind turbines
  • Flexible wires with nylon for better resistance to pressure and impacts as per UL 1277
  • Easy stripping and fast installation
  • Very flexible flexibility for complex installation distances and small bending radii
  • Improved oil resistance due to specifically developed PVC jacket

Specifications

Conductor Size:18 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:US
Insulation Material:Nylon/PVC
Jacket Color:Gray
Jacket Material:PVC
Number of Conductors:7
Outside Diameter:0.373 in
Series:A308
Strands:19/30
Temperature Rating:-40 to 90 deg C Static
Voltage Rating:600/1000 V
