A3081812 LST

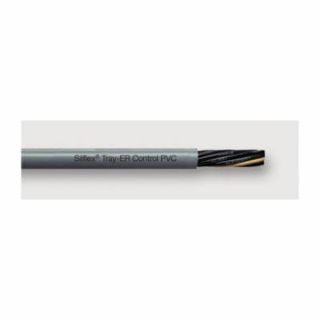

Picture of A3081812 LST
Actual Product May Vary From Image

Product Details

Manufacturer:
Lutze
Manufacturer part number:
A3081812
CBT Inventory
500
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
500
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
500 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3.32 / FT

Description

Brand Name

LUTZE

Type

Unshielded

Description

LUTZE Control Cable, Unshielded, 600 VAC, 12 Conductors, Bare Stranded Copper Conductor, 18 AWG Conductor, 0.477 in OD, 19/30 Strands, PVC/Nylon Insulation, PVC Jacket, Gray Jacket, -40 to 90 deg C

Application

For machine and device construction, transport and conveyor technology, HVAC technology, dry, moist and wet rooms

Standards

cURus | TC-ER | WTTC | cULus Listed | UL Type MTW or DP-1 | Class 1 Div. 2 per NEC Art. 336 | 392 | 501 | CIC FT4 | cUL TC | UL 1277 | CE Certified | REACH Certified | RoHS Compliant

Features

  • Flexible wires with nylon for better resistance to pressure and impacts as per UL 1277
  • Easy stripping and fast installation
  • Very flexible flexibility for complex installation distances and small bending radii
  • Improved oil-resistance due to specifically developed PVC jacket
  • Direct burial for installation in the ground
  • Wind turbine tray cable for use in wind turbines, machine tool wire, power limited tray cable exposed run, instrumentation tray cable exposed run
  • Oil-resistant, silicone-free jacket characteristics
  • 4xD minimum bending radius fixed
  • Black with white number print, green/yellow conductor marking

Specifications

Conductor Size:18 AWG
Conductor Type:Bare Stranded Copper
Insulation Material:PVC/Nylon
Jacket Color:Gray
Jacket Material:PVC
Number of Conductors:12
Outside Diameter:0.477 in
Strands:19/30
Temperature Rating:-40 to 90 deg C
Voltage Rating:600 VAC
