A3091403 LST

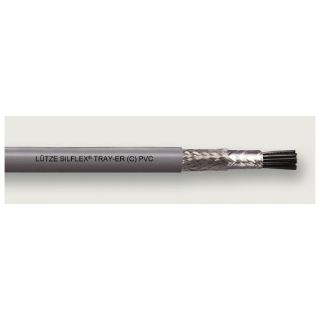

Picture of A3091403 LST
Actual Product May Vary From Image

Product Details

Manufacturer:
Lutze
Manufacturer part number:
A3091403
CBT Inventory
100
Vendor Inventory
Loading...
CBT - Cincinnati
100
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
$3.20 / EA

Description

Brand Name

Silflex®

Type

Tray-ER Shielded

Description

LUTZE SILFLEX® Control Tray Cable, Tray-ER Shielded, Series: A309, 600/1000 V, 3 Conductors, Stranded Bare Copper Conductor, 14 AWG Conductor, 3/8 in OD, 41/30 Strands, Nylon/PVC Insulation, PVC Jacket, Gray Jacket, -40 to 90 deg C Static

Application

For machine tools, machine and plant construction, HVAC technology, assembly and production lines and other industrial applications

Standards

Article 336/392/501 | CE Certified | cUL TC and CIC FT4 | DP-1 | NEC Class 1 Division 2 | REACH Compliant | RoHS Compliant | TC-ER-JP Approved | UL Type MTW/1277 | UL AWM Style 20886 | WTTC Approved

Features

  • Flexible control and tray cable for stationary applications
  • Dual-shielded multi-conductor cable for tray and control applications, with exposed run (open wiring) approval
  • Crush impact-resistant
  • Gas/vaportight sheath per UL 1277
  • Non-wicking fillers
  • Sunlight-resistant
  • Flame retardant
  • Direct burial (18 AWG and larger)
  • Talc and silicone-free
  • TC-ER for use on machines and in open cable ducts
  • WTTC - wind turbine tray cable for use in wind turbines
  • MTW - machine tool wire
  • PLTC-ER - power limited tray cable - exposed run
  • ITC-ER - instrumentation tray cable
  • In dry, moist and wet rooms
  • Flexible wires with nylon for better resistance to pressure and impacts as per UL 1277
  • Very flexible flexibility for complex installation distances and small bending radii
  • Improved oil resistance due to specifically developed PVC jacket

Specifications

Conductor Size:14 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:US
Insulation Material:Nylon/PVC
Jacket Color:Gray
Jacket Material:PVC
Number of Conductors:3
Outside Diameter:3/8 in
Series:A309
Strands:41/30
Temperature Rating:-40 to 90 deg C Static
Voltage Rating:600/1000 V
