A4J200 FER

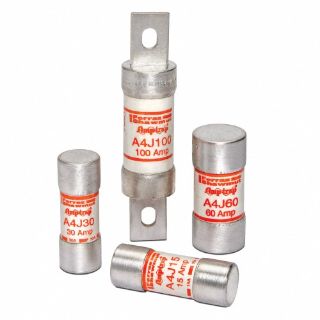

Mersen Amp-Trap® A4J200 Current Limiting Low Voltage Fast Acting Fuse, 200 A, 600 VAC/300 VDC, 200/100 kA, Class J, Cylindrical Body
Manufacturer: Mersen
Manufacturer part number: A4J200
Availability: Expected Leadtime 15 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$103.02

Product Details

Brand Name

Mersen

Type

Current Limiting Low Voltage

Description

Amp-Trap® fast acting A4J fuses deliver excellent current limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current limiting capability.
Mersen Amp-Trap® Fast Acting Fuse, Current Limiting Low Voltage, Series: A4J, Rejection/Non-Rejection: Rejection, 200 A, 600 VAC/300 VDC, 200/100 kA Interrupt, Class: J, Blade Terminal, Clip Mount, Cylindrical Body, Polyester, 1-5/8 in Dia x 5-3/4 in L Body Size

Application

Capacitors, Load centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Circuit Breakers, Lighting, Heating and General Loads Applications

Standards

RoHS Compliant | UL 248-8 | UL File No. E2137 | CSA C22.2 No. 248.8 | IEC 269-2-1

Features

  • High current - limitation for low peak let-thru current
  • Unique dimensions prevent replacement by other fuse classes
  • Fiberglas body provides dimensional stability in harsh industrial environments
  • Easy-to-read imprint label for quick recognition and replacement
  • Tin-plated copper, silver-plated copper contact
  • North American power fuses

Specifications

Amperage Rating:200 A
Body Size:1-5/8 in Dia x 5-3/4 in L
Body Type:Cylindrical
Class:J
Country of Origin:MX
Interrupt Rating:200/100 kA
Material:Polyester
Mounting Type:Clip
Rejection/Non-Rejection:Rejection
Series:A4J
Terminal Type:Blade
Voltage Rating:600 VAC/300 VDC
