A4J80 FER

Name: A4J80 FER
Brand: Mersen
SKU: A4J80 FER
Price: 130.49 USD
Availability: InStock

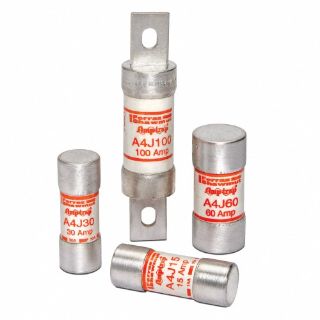

Actual Product May Vary From Image

Product Details

Manufacturer:

Mersen

Manufacturer part number:

A4J80

Product Name:

A4J80 FER

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 15 days

Estimated dates are contingent upon manufacturer stock.

$130.49 / EA

Description

Brand Name

Mersen

Type

Current Limiting Low Voltage

Description

Amp-Trap® fast acting A4J fuses deliver excellent current limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current limiting capability.

Mersen Amp-Trap® Fast Acting Fuse, Current Limiting Low Voltage, Series: A4J, Rejection/Non-Rejection: Rejection, 80 A, 600 VAC/300 VDC, 200/100 kA Interrupt, Class: J, Blade Terminal, Clip Mount, Cylindrical Body, Polyester, 1-1/8 in Dia x 4-4/8 in L Body Size

Application

Capacitors, Load centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Circuit Breakers, Lighting, Heating and General Loads Applications

Standards

RoHS Compliant | UL 248-8 | UL File No. E2137 | CSA C22.2 No. 248.8 | IEC 269-2-1

Features

High current - limitation for low peak let-thru current
Unique dimensions prevent replacement by other fuse classes
Fiberglas body provides dimensional stability in harsh industrial environments
Easy-to-read imprint label for quick recognition and replacement
Tin-plated copper, silver-plated copper contact
North American power fuses

Specifications

Amperage Rating:	80 A
Body Size:	1-1/8 in Dia x 4-4/8 in L
Body Type:	Cylindrical
Class:	J
Country of Origin:	MX
Interrupt Rating:	200/100 kA
Material:	Polyester
Mounting Type:	Clip
Rejection/Non-Rejection:	Rejection
Series:	A4J
Terminal Type:	Blade
Voltage Rating:	600 VAC/300 VDC
