A84 GAT

Picture of A84 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
A84
Product Name:
A84 GAT
CBT Inventory
9
Vendor Inventory
Loading...
CBT - Cincinnati
6
CBT - Springboro
3
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$22.64 / EA

Description

Brand Name

Gates®

Type

Banded Classical Heavy Duty

Description

The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.
Gates® Hi-Power® II V-Belt, Banded Classical Heavy Duty, Series: 9002, A Section, 1/2 in Top Width, 86 in Outside Length, 5/16 in Thickness, 1 Rib, 4.138 in Diameter Minimum Pulley, EPDM, Flex-Bonded Polyester Reinforced

Application

For all industrial applications, including V-flat drives

Standards

ARPM/RMA IP-3-2/IP-3-3

Features

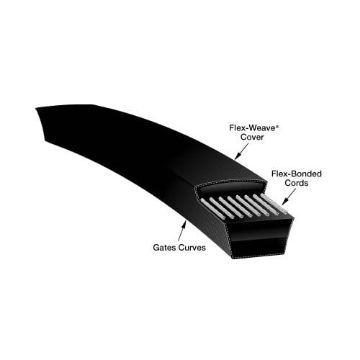

  • Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
  • The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
  • Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
  • Featuring a composite, multi-purpose construction, these belts resist oil and heat, ozone, sunlight, weather and aging

Specifications

Country of Origin:MX
Material:EPDM
Minimum Pulley Diameter:4.138 in
Number of Ribs:1
Outside Length:86 in
Reinforced Material:Flex-Bonded Polyester
Section Size:A
Series:9002
Thickness:5/16 in
Top Width:1/2 in

Products Specifications

Brand Name
Gates
