AGPNC12C24ML APN

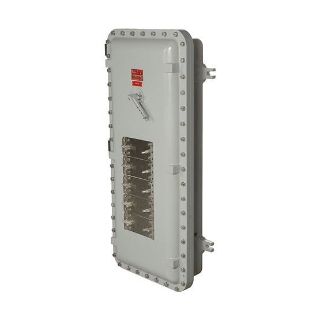

Appleton® AGPNC12C24ML Explosionproof Non-Factory Sealed Distribution Panelboard With Quicklag® Breakers, 120/208 VAC, 100 A, 1 Poles, 10 kA Interrupt
Manufacturer: Appleton
Manufacturer part number: AGPNC12C24ML
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Appleton®

Type

Explosionproof Non-Factory Sealed

Description

Appleton® explosionproof, dust-ignitionproof, watertight, ALPN, AGPN and APPN Series distribution panelboards are used to provide protection and control of electrical equipment in hazardous locations. These non-factory sealed panelboards are designed to centrally control switching systems for multiple branch circuits that are used for lighting, heat trace, small motors and other electrical equipment. ALPN, AGPN and APPN Series panelboards are suitable for use in damp, wet, corrosive and hazardous locations, including chemical and petrochemical plants, petroleum refineries, other process facilities and industrial applications.
Appleton® Distribution Panelboard, Explosionproof Non-Factory Sealed, Series: AGPN, 120/208 VAC, 100 A, 1 Pole, 10 kA Interrupt, 24 Circuits, GFI Breaker, Copper Plated Bus, NEMA 4/4X/7B/7C/7D/9E/9F/9G Enclosure, Copper Free Aluminum Housing Material, 32-3/4 in H x 20-3/4 in W x 11 in D Dimensions, Gray

Application

For lighting, heating, small motors, similar electrical equipment and hazardous locations

Standards

UL 1203/E84577 | UL Listed for Class I, Div 1 and 2, Groups B, C, D | Class II, Div 1 and 2, Groups E, F, G Class III, Class I, Zone 1, Group IIB +H2

Features

  • Breaker operators included as standard
  • O-ring gasket insures watertight integrity
  • Precision machined flame path between body and cover
  • Slotted mounting feet
  • Breaker operators can be padlocked in the on or off position
  • Factory installed ground and neutral bar as standard
  • Epoxy powder coated finish
  • Stainless steel cover bolts, hinges
  • Neoprene O-ring
  • Main lug construction type
  • Dust-ignitionproof

Specifications

Amperage Rating:100 A
Breaker Type:GFI
Bus Material:Copper Plated
Color:Gray
Country of Origin:US
Dimensions:32-3/4 in H x 20-3/4 in W x 11 in D
Enclosure Type:NEMA 4/4X/7B/7C/7D/9E/9F/9G
Housing Material:Copper Free Aluminum
Interrupt Rating:10 kA
Number of Circuits:24
Number of Poles:1
Series:AGPN
Voltage Rating:120/208 VAC
