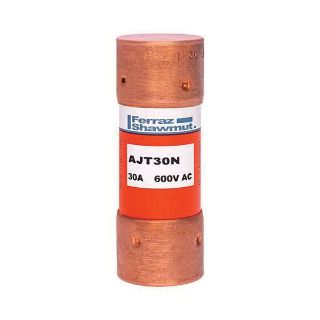

Actual Product May Vary From Image

AJT30N FER

Name: AJT30N FER
Brand: Mersen
SKU: AJT30N FER
Price: 25.68 USD
Availability: InStock

Mersen Amp-Trap 2000® AJT30N Low Voltage Time Delay Power Fuse, 30 A, 600 VAC/500 VDC, 200 kA AC/100 kA DC Interrupt, J Class

Manufacturer: Mersen

Manufacturer part number: AJT30N

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
7	3	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$25.68

Qty:

Product Details

Brand Name

Mersen

Type

Low Voltage Time Delay

Description

Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot® visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder and branch circuits, for all types of loads - yet, they require only half the mounting space needed for 600 VAC Class RK fuses. AJT's time delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.

Mersen Amp-Trap 2000® Power Fuse, Low Voltage Time Delay, Series: AJT, Non-Indicating, Non-Rejection, 30 A, 600 VAC/500 VDC, 200 kA AC/100 kA DC Interrupt, Class: J, 50/60 Hz Frequency, Ferrule Terminal, Clip Mounting, Cylindrical Body, Dual Element, Glass Melamine Laminate, 13/16 in Dia x 2-1/4 in L Body

Application

Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heating and General Loads, Transformers, Control Panels, Circuit Breaker Back-Up, Bus Duct and Load Centers

Standards

Features

Non-indicating or solid state SmartSpot® visual blown fuse indicator
Time delay for motor starting and transformer inrush
300 kA interrupting rating - self-certified, UL witnessed tests
Extremely current limiting for low peak let-thru current
Non-indicating fuses suitable for use in NEC class I division 2 hazardous locations
Recommended for Arc Flash energy reduction
Small footprint requires less mounting space and allows smaller, more economical fuse blocks
Easy 2-to-1 selectivity for prevention of nuisance shutdowns
Unique Class J dimensions prevent replacement errors
High-visibility orange label gives instant brand recognition
Metal-embossed date and catalog number for traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
High-grade silica filler ensures fast arc quenching
Silver-plated copper terminal

Specifications

Amperage Rating:	30 A
Body Size:	13/16 in Dia x 2-1/4 in L
Body Type:	Cylindrical
Class:	J
Country of Origin:	MX
Element:	Dual
Frequency Rating:	50/60 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA AC/100 kA DC
Material:	Glass Melamine Laminate
Mounting Type:	Clip
Rejection/Non-Rejection:	Non-Rejection
Series:	AJT
Terminal Type:	Ferrule
Voltage Rating:	600 VAC/500 VDC
