Actual Product May Vary From Image

AJT70 FER

Name: AJT70 FER
Brand: Mersen
SKU: AJT70 FER
Price: 105.40 USD
Availability: InStock

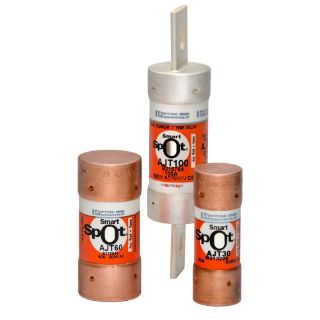

Mersen AMP-TRAP® 2000 SmartSpot® AJT70 Current Limiting Low Voltage North American Time Delay Power Fuse, 70 A, 600 VAC, 200 kA Interrupt, J Class, Cylindrical Body

Manufacturer: Mersen

Manufacturer part number: AJT70

Availability: Expected Leadtime 15 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
12	4	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$105.40

Qty:

Product Details

Brand Name

Mersen

Type

Current Limiting Low Voltage North American Time Delay

Alternate Supplier #

Grainger - 4TAT6

Description

Amp-Trap® 2000 SmartSpot® AJT fuses now provide a visual open fuse indicator. With advanced material technology the AJT fuse provides IEC type-2 no damage protection to main, feeder and branch circuits, for all types of loads - yet, they require only half the mounting space needed for 600 VAC class RK fuses. AJT's time delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current limiting ability.

Mersen AMP-TRAP® 2000 SmartSpot® Power Fuse, Current Limiting Low Voltage North American Time Delay, Series: AJT, Indicating, Rejection, 70 A, 600 VAC, 200 kA Interrupt, Class: J, Blade Terminal, Clip Mounting, Cylindrical Body, Dual Element, Fiberglass, 1-1/16 in Dia x 4-5/8 in L Body

Application

Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heaters, Transformers, Control Panels, Circuit Breaker Back-Up, Bus Duct and Load Centers Applications

Standards

Features

Solid state SmartSpot® indicator
Time delay for motor starting and transformer inrush
300 kA interrupting rating, self certified (UL witnessed)
Extremely current limiting for low peak let-thru current
Most current limiting UL class fuse
Small footprint requires less mounting space and allows smaller, more economical fuse blocks
Easy 2-to-1 selectivity for prevention of nuisance shutdowns
Unique class J dimensions prevent replacement errors
High visibility orange label gives instant recognition
Metal embossed date and catalog number for traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
High grade silica filler ensures fast arc quenching
Tin-plated copper, silver-plated copper contact

Specifications

Amperage Rating:	70 A
Body Size:	1-1/16 in Dia x 4-5/8 in L
Body Type:	Cylindrical
Class:	J
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200 kA
Material:	Fiberglass
Mounting Type:	Clip
Rejection/Non-Rejection:	Rejection
Series:	AJT
Terminal Type:	Blade
Voltage Rating:	600 VAC
