APPFSC175A APN

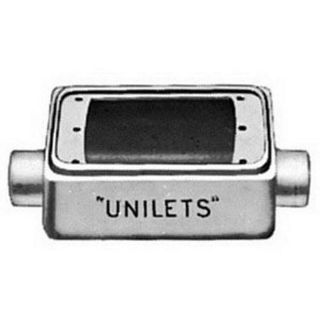

Picture of APPFSC175A APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
FSC175A
Product Name:
APPFSC175A APN
CBT Inventory
7
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
7
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
$41.82 / EA

Description

Brand Name

Appleton®

Type

Type FSC Heavy Duty Shallow

Description

Appleton® UNILETS™ Device Box, Type FSC Heavy Duty Shallow, 2 Outlets, 1 Gangs, 2 Knockouts, 3/4 in Hub, Tapered Threaded Hub, Knockout Cable Entry Size, NEMA FB-1, 25 cu-in, Aluminum, Epoxy Powder Coated, 4.56 in H x 2.81 in W x 2 in D

Application

For use with threaded rigid/IMC conduit

Standards

UL 514A E2527 | CSA C22.2 No. 18.1, 001472

Features

  • Corrosion-resistant ideal for indoor and outdoor installations
  • Weatherproof, raintight and dust tight when used with cast gasketed covers
  • FS and FD boxes take standard flush wiring devices
  • FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
  • Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
  • Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Complete selection of covers, receptacles, plugs, gaskets and accessories
  • Covers have captive stainless steel screws to speed installation, prevents loss of screws
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Accommodate wiring devices such as switches and receptacles
  • Provide excellent service in areas where boxes are subject to rough usage
  • Serve as pull boxes for conductors
  • Permit access to conductors for maintece
  • Provide openings for making splices
  • Allow connections for branch conduit runs
  • Blank bodies for special conduit entrance arrangements
  • Without knockouts

Includes

Internal Ground Screw and Mounting Lug

Specifications

Cable Entry Size:Knockout
Capacity:25 cu-in
Country of Origin:MX
Dimensions:4.56 in H x 2.81 in W x 2 in D
Enclosure Type:NEMA FB-1
Finish:Epoxy Powder Coated
Hub Size:3/4 in
Hub Style:Tapered Threaded
Material:Aluminum
Number of Gangs:1
Number of Knockouts:2
Number of Outlets:2

Products Specifications

Type
FS
