APPLB125A APN

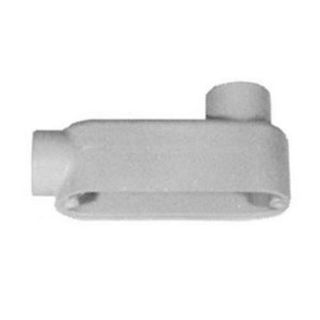

Picture of APPLB125A APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
LB125-A
Product Name:
APPLB125A APN
CBT Inventory
4
Vendor Inventory
Loading...
CBT - Cincinnati
2
CBT - Springboro
2
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
$40.65 / EA

Description

Brand Name

Appleton®

Type

Type LB

Alternate Supplier #

Grainger - 10V935

Description

Appleton® Form 85™ UNILETS™ Conduit Outlet Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintece.
Appleton® UNILETS™ Conduit Outlet Body, Type LB, 1-1/4 in Hub, 2 Hubs, 34.8 cu-in, 85, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Pressure Cast Aluminum, Epoxy Powder Coated, 7.88 in L x 3.88 in H

Application

For Rigid Steel/Aluminum, IMC and EMT Conduit

Standards

UL 514A/514B/E2527 | CSA C22.2 No. 18.3/065183

Features

  • Smooth, rounded integral bushing in hubs protects conductor insulation
  • Roomy interiors more wiring space
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Form 85™ copper free aluminum UNILETS™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
  • Lightweight aluminum facilitates shipping, handling and installing
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • Internal volume and maximum wire capacity clearly marked on castings
  • Threaded style is raintight when used with casketed covers

Specifications

Capacity:34.8 cu-in
Connection Type:Tapered FNPT
Country of Origin:IN
Dimensions:7.88 in L x 3.88 in H
Enclosure:NEMA FB-1
Finish:Epoxy Powder Coated
Form:85
Hub Size:1-1/4 in
Material:Pressure Cast Aluminum
Mounting Type:Surface
Number of Hubs:2

Products Specifications

Brand Name
Appleton
Connection
Tapered Female Threaded
Form
85
Material
Aluminum
Size
1 1/4 in
Type
Conduit Outlet Body
