APPTB75A APN

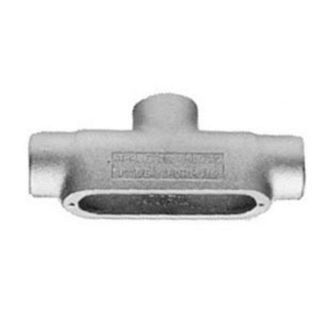

Picture of APPTB75A APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
TB75A
Product Name:
APPTB75A APN
CBT Inventory
10
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
10
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
$36.48 / EA

Description

Brand Name

Appleton®

Type

Type TB

Alternate Supplier #

Grainger - 5KG63

Description

Appleton® Form 85™ UNILETS™ Conduit Outlet Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintece.
Appleton® UNILETS™ Conduit Outlet Body, Type TB, 3/4 in Hub, 3 Hubs, 7 cu-in Capacity, Form 85 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Sand Cast Aluminum, Epoxy Powder Coated Finish, 5.63 in L x 1.56 in W Dimensions

Application

For Rigid Steel/Aluminum and IMC Conduit

Standards

UL 514A/514B/E2527 | C22.2 No. 18.3 | CSA 065183

Features

  • Roomy interiors more wiring space
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Form 85™ copper free aluminum UNILETS™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
  • Lightweight aluminum facilitates shipping, handling and installing
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • Internal volume and maximum wire capacity clearly marked on castings
  • Threaded style is raintight when used with casketed covers

Specifications

Capacity:7 cu-in
Connection Type:Tapered FNPT
Country of Origin:MX
Dimensions:5.63 in L x 1.56 in W
Enclosure:NEMA FB-1
Finish:Epoxy Powder Coated
Form:Form 85
Hub Size:3/4 in
Material:Sand Cast Aluminum
Mounting Type:Surface
Number of Hubs:3

Products Specifications

Brand Name
Appleton
Connection
Tapered Female Threaded
Form
85
Material
Aluminum
Size
3/4 in
Type
Conduit Outlet Body
