Actual Product May Vary From Image

AS2201F-N01-07SA SMC

Name: AS2201F-N01-07SA SMC
Brand: SMC
SKU: AS2201F-N01-07SA SMC
Price: 10.10 USD
Availability: InStock

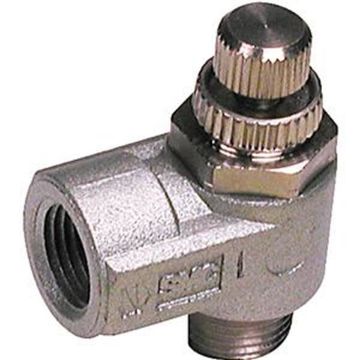

SMC® AS2201F-N01-07SA AS-F Elbow Speed Controller, 1/8 Port, 0.1 to 1 MPa Pressure, 230 Lpm Flow Rate, PBT/Brass Body

Manufacturer: SMC

Manufacturer part number: AS2201F-N01-07SA

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
20	10	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$10.10

Qty:

Product Details

Brand Name

SMC®

Type

Elbow

Description

SMC®, AS2201F-N01-07SA, Speed Controller, Elbow, Series: AS-F, 1/4 in Nominal, 1/8 Port, 0.1 to 1 MPa Pressure, -5 to 60 deg C, 230 Lpm Flow Rate, NPT Port, Media: Air, PBT/Brass Body, H-NBR/NBR Softgoods, 34.7 mm H x 31 mm L x 12.7 mm D Dimensions

Application

Allow for easy locking of the flow rate setting without a tool

Standards

RoHS Compliant

Features

Elbow type, speed control with one-touch fitting
Improved, larger push-lock handle
Easy identification of meter-in (blue handle) vs meter-out (gray handle)
Max. operating pressure 1MPa
Applicable tubing Material, nylon, soft nylon, polyurethane

Specifications

Body Material:	PBT/Brass
Country of Origin:	JP
Dimensions:	34.7 mm H x 31 mm L x 12.7 mm D
Flow Rate:	230 Lpm
Media:	Air
Nominal Size:	1/4 in
Port Size:	1/8
Port Type:	NPT
Pressure Rating:	0.1 to 1 MPa
Series:	AS-F
Softgoods Material:	H-NBR/NBR
Temperature Rating:	-5 to 60 deg C
