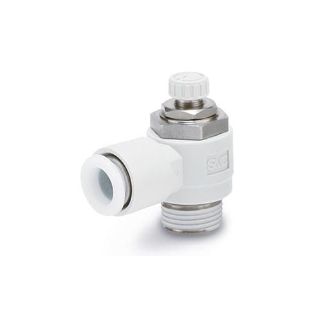

AS2201F-N02-11S SMC

Name: AS2201F-N02-11S SMC
Brand: SMC
SKU: AS2201F-N02-11S SMC
Price: 14.00 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

SMC

Manufacturer part number:

AS2201F-N02-11S

product.name:

AS2201F-N02-11S SMC

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$14.00 / EA

Description

Brand Name

SMC®

Type

Elbow

Description

SMC®, AS2201F-N02-11S, Speed Controller, Elbow, Series: AS-F, 3/8 in Nominal, 1/4 Port, 0.1 to 1 MPa Pressure, -5 to 60 deg C, 460 Lpm Flow Rate, NPT Port, Media: Air, PBT/Brass Body, H-NBR/NBR Softgoods, 40.2 mm H x 44.5 mm L x 17.5 mm D Dimensions

Standards

RoHS Compliant

Features

Speed controller with one-touch fittings
Body sizes are M3, M5, 1/8, 1/4, 3/8, 1/2
Maximum operating pressure 1MPa
Meter in or meter out control
Port sizes are M3, M5, U10/32, 01, 02, 03, 04
Various tube O.D. in both metric and inch

Specifications

Body Material:	PBT/Brass
Country of Origin:	JP
Dimensions:	40.2 mm H x 44.5 mm L x 17.5 mm D
Flow Rate:	460 Lpm
Media:	Air
Nominal Size:	3/8 in
Port Size:	1/4
Port Type:	NPT
Pressure Rating:	0.1 to 1 MPa
Series:	AS-F
Softgoods Material:	H-NBR/NBR
Temperature Rating:	-5 to 60 deg C
