Actual Product May Vary From Image

AS4201F-N04-11 SMC

Name: AS4201F-N04-11 SMC
Brand: SMC
SKU: AS4201F-N04-11 SMC
Price: 17.00 USD
Availability: InStock

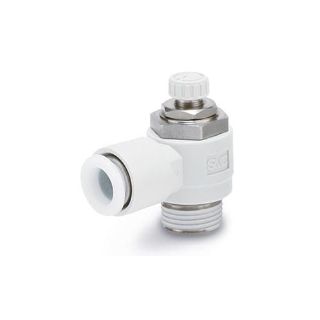

SMC® AS4201F-N04-11 Elbow Valve, 1/2 Port, +0.1 to +1 MPa Pressure, Brass/PBT Body

Manufacturer: SMC

Manufacturer part number: AS4201F-N04-11

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
3	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$17.00

Qty:

Product Details

Brand Name

SMC®

Type

Elbow

Description

SMC®, AS4201F-N04-11, Valve, Elbow, 1/2 Port, +0.1 to +1 MPa Pressure, -5 to +60 deg C, NPT Port, Brass/PBT Body, Nitrile Trim, 33.6 mm H x 56.7 mm L Dimensions

Standards

RoHS Compliant

Features

Speed controller with one-touch fittings
Body sizes are M3, M5, 1/8, 1/4, 3/8, 1/2
Maximum operating pressure 1MPa
Meter in or meter out control
Port sizes are M3, M5, U10/32, 01, 02, 03, 04
Various tube O.D. in both metric and inch

Specifications

Body Material:	Brass/PBT
Country of Origin:	JP
Dimensions:	33.6 mm H x 56.7 mm L
Port Size:	1/2
Port Type:	NPT
Pressure Rating:	+0.1 to +1 MPa
Temperature Rating:	-5 to +60 deg C
Trim Material:	Nitrile
