Name: ASP330F-N01-07S SMC
Brand: SMC
SKU: ASP330F-N01-07S SMC
Price: 35.90 USD
Availability: InStock

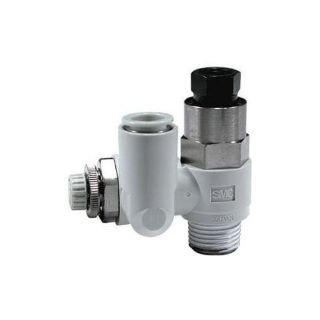

ASP330F-N01-07S SMC

Actual Product May Vary From Image

Product Details

Manufacturer:

SMC

Manufacturer part number:

ASP330F-N01-07S

Product Name:

ASP330F-N01-07S SMC

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$35.90 / EA

Description

Brand Name

SMC®

Description

SMC®, ASP330F-N01-07S, Speed Control w/Pilot Check Valve, Series: ASP, 1/4 in Nominal, 1/8 NPT x 10-32 UNF Port, 0.1 to 1 MPa Pressure, -5 to 60 deg C, Pilot Port, Media: Air, Brass/PBT Body, Electroless Nickel Plated, 38.6 in H Dimensions

Standards

RoHS Compliant

Features

Pilot check operates with 50% of operating pressure
One-touch connection for supply air only
Available in 6-10mm and 1/4 in-1/2 in tube sizes
Universal style connection standard
Thread sealant is standard
Available in PT, NPT, and G thread (standard)

Specifications

Body Material:	Brass/PBT
Country of Origin:	JP
Dimensions:	38.6 in H
Finish:	Electroless Nickel Plated
Media:	Air
Nominal Size:	1/4 in
Port Size:	1/8 NPT x 10-32 UNF
Port Type:	Pilot
Pressure Rating:	0.1 to 1 MPa
Series:	ASP
Temperature Rating:	-5 to 60 deg C
