ASP430F-02-06S SMC

Name: ASP430F-02-06S SMC
Brand: SMC
SKU: ASP430F-02-06S SMC
Price: 39.90 USD
Availability: InStock

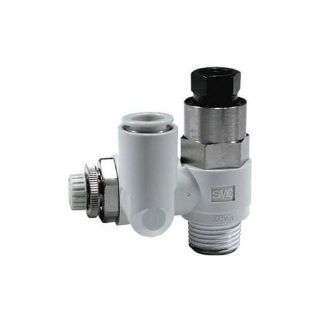

SMC® ASP430F-02-06S ASP Speed Control w/Pilot Check Valve, R1/4 x R1/8 Port, 0.1 to 1 MPa Pressure, Brass/PBT Body

Manufacturer: SMC

Manufacturer part number: ASP430F-02-06S

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	4
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$39.90

Qty:

Product Details

Brand Name

SMC®

Description

SMC®, ASP430F-02-06S, Speed Control w/Pilot Check Valve, Series: ASP, 6 mm Nominal, R1/4 x R1/8 Port, 0.1 to 1 MPa Pressure, -5 to 60 deg C, Pilot Port, Media: Air, Brass/PBT Body, Electroless Nickel Plated, 48.2in H Dimensions

Standards

RoHS Compliant

Features

Pilot check operates with 50% of operating pressure
One-touch connection for supply air only
Available in 6-10mm and 1/4 in-1/2 in tube sizes
Universal style connection standard
Thread sealant is standard
Available in PT, NPT, and G thread (standard)

Specifications

Body Material:	Brass/PBT
Country of Origin:	JP
Dimensions:	48.2in H
Finish:	Electroless Nickel Plated
Media:	Air
Nominal Size:	6 mm
Port Size:	R1/4 x R1/8
Port Type:	Pilot
Pressure Rating:	0.1 to 1 MPa
Series:	ASP
Temperature Rating:	-5 to 60 deg C
