Name: ASP430F-N02-07S SMC
Brand: SMC
SKU: ASP430F-N02-07S SMC
Price: 41.90 USD
Availability: InStock

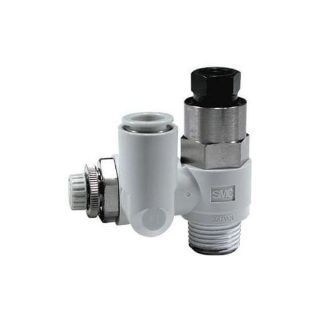

ASP430F-N02-07S SMC

Actual Product May Vary From Image

Product Details

Manufacturer:

SMC

Manufacturer part number:

ASP430F-N02-07S

CBT Inventory

Vendor Inventory

Availability:

4 in stock

Estimated dates are contingent upon manufacturer stock.

$41.90 / EA

Description

Brand Name

SMC®

Description

SMC®, ASP430F-N02-07S, Speed Control w/Pilot Check Valve, Series: ASP, 1/4 in Nominal, 1/4 x 1/8 in Port, 0.1 to 1 MPa Pressure, -5 to 60 deg C, NPT Port, Media: Air, Brass/PBT Body, Electroless Nickel Plated

Standards

RoHS Compliant

Features

Pilot check operates with 50% of operating pressure
One-touch connection for supply air only
Available in 6-10mm and 1/4 in-1/2 in tube sizes
Universal style connection standard
Thread sealant is standard
Available in PT, NPT, and G thread (standard)

Specifications

Body Material:	Brass/PBT
Country of Origin:	JP
Finish:	Electroless Nickel Plated
Media:	Air
Nominal Size:	1/4 in
Port Size:	1/4 x 1/8 in
Port Type:	NPT
Pressure Rating:	0.1 to 1 MPa
Series:	ASP
Temperature Rating:	-5 to 60 deg C
