ATMR1/2 FER

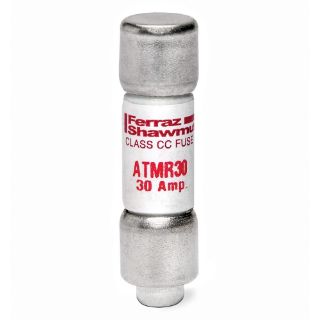

Picture of ATMR1/2 FER
Actual Product May Vary From Image

Product Details

Manufacturer:
Mersen
Manufacturer part number:
ATMR1/2
CBT Inventory
8
Vendor Inventory
Loading...
CBT - CINCINNATI
8
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
8 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$30.99 / EA

Description

Brand Name

Mersen

Type

Current Limiting Low Voltage

Alternate Supplier #

Grainger - 4ZAY5

Description

Amp-Trap® ATMR fuses, in the Class CC family, are the smallest dimension 600 V fuses suitable for branch circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10000 A. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast acting fuses give current limiting protection to general circuits.
Mersen Amp-Trap® Fast Acting Fuse, Current Limiting Low Voltage, Series: ATMR, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 0.5 A, 600 VAC/VDC, 200/100 kA Interrupt, Class: CC, Ferrule Terminal, Clip Mount, Cylindrical Body, Single Element, Fiber, 13/32 in Dia x 1-1/2 in L Body Size

Application

Control Circuits, Lighting, General Loads and Branch Circuit Protection Applications

Standards

RoHS Compliant | UL 248-4 | UL File No. E2137 | DC UL 248 | CSA C22.2 No. 248.4

Features

  • Rejection style design prevents replacement errors when used with recommended fuse blocks
  • Fiberglass body provides dimensional stability in harsh industrial environments
  • Versatile design for individual component and branch circuit protection
  • Tin-plated copper contact
  • North American power fuses

Specifications

Amperage Rating:0.5 A
Body Size:13/32 in Dia x 1-1/2 in L
Body Type:Cylindrical
Class:CC
Country of Origin:MX
Element:Single
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200/100 kA
Material:Fiber
Mounting Type:Clip
Rejection/Non-Rejection:Rejection
Series:ATMR
Terminal Type:Ferrule
Voltage Rating:600 VAC/VDC
