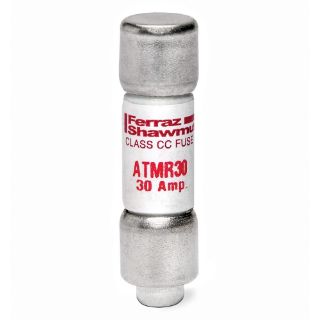

Actual Product May Vary From Image

ATMR2 FER

Name: ATMR2 FER
Brand: Mersen
SKU: ATMR2 FER
Price: 19.66 USD
Availability: InStock

Mersen Amp-Trap® ATMR2 Current Limiting Low Voltage Fast Acting Fuse, 2 A, 600 VAC/VDC, 200/100 kA, Class CC, Cylindrical Body

Manufacturer: Mersen

Manufacturer part number: ATMR2

Availability: Expected Leadtime 15 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
9	3	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$19.66

Qty:

Product Details

Brand Name

Mersen

Type

Current Limiting Low Voltage

Alternate Supplier #

Grainger - 4ZAZ1

Description

Amp-Trap® ATMR fuses, in the Class CC family, are the smallest dimension 600 V fuses suitable for branch circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10000 A. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast acting fuses give current limiting protection to general circuits.

Mersen Amp-Trap® Fast Acting Fuse, Current Limiting Low Voltage, Series: ATMR, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 2 A, 600 VAC/VDC, 200/100 kA Interrupt, Class: CC, Ferrule Terminal, Clip Mount, Cylindrical Body, Single Element, Fiber, 13/32 in Dia x 1-1/2 in L Body Size

Application

Control Circuits, Lighting, General Loads and Branch Circuit Protection Applications

Standards

RoHS Compliant | UL 248-4 | UL File No. E2137 | DC UL 248 | CSA C22.2 No. 248.4

Features

Rejection style design prevents replacement errors when used with recommended fuse blocks
Fiberglass body provides dimensional stability in harsh industrial environments
Versatile design for individual component and branch circuit protection
Tin-plated copper contact
North American power fuses

Specifications

Amperage Rating:	2 A
Body Size:	13/32 in Dia x 1-1/2 in L
Body Type:	Cylindrical
Class:	CC
Country of Origin:	MX
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200/100 kA
Material:	Fiber
Mounting Type:	Clip
Rejection/Non-Rejection:	Rejection
Series:	ATMR
Terminal Type:	Ferrule
Voltage Rating:	600 VAC/VDC
