ATQ3 FER

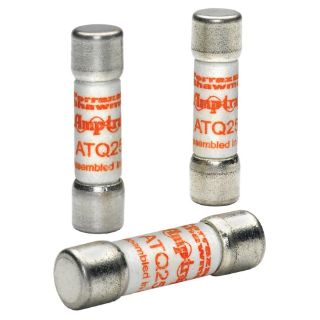

Picture of ATQ3 FER
Actual Product May Vary From Image

Product Details

Manufacturer:
Mersen
Manufacturer part number:
ATQ3
Product Name:
ATQ3 FER
CBT Inventory
15
Vendor Inventory
Loading...
CBT - Cincinnati
15
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 15 days
Estimated dates are contingent upon manufacturer stock.
$30.99 / EA

Description

Brand Name

Mersen

Type

Low Voltage

Alternate Supplier #

Grainger - 4ZCL5

Description

Amp-Trap® ATQ midget time delay fuses are rated a full 500 VAC with 42 A ratings from 1/10 to 30 A. They are an excellent choice for supplemental protection of circuits up to 30 A where the available short circuit current does not exceed 10,000 A. (Not for Branch Circuit Protection).
Mersen Amp-Trap® Time Delay Fuse, Low Voltage, Series: ATQ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 3 A, 500 VAC, 10 kA Interrupt, Class: Midget, Ferrule Terminal, Clip Mount, Cylindrical Body, Dual Element, Fiber, 13/32 in Dia x 1-1/2 in L Body Size

Application

For supplemental protection of lighting, solenoid, motor and transformer circuits applications

Standards

UL File No. E33925 | CSA C22.2 No.248.14 | RoHS Compliant

Features

  • Numerous ratings for a wide variety of applications up to 500 VAC
  • Time-delay (12 sec at 200% rating) for circuits with high inrush current
  • Tin-plated copper contact
  • Can be used with UltraSafe™ fuse holders

Specifications

Amperage Rating:3 A
Body Size:13/32 in Dia x 1-1/2 in L
Body Type:Cylindrical
Class:Midget
Country of Origin:MX
Element:Dual
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:10 kA
Material:Fiber
Mounting Type:Clip
Rejection/Non-Rejection:Non-Rejection
Series:ATQ
Terminal Type:Ferrule
Voltage Rating:500 VAC

Products Specifications

Amperage Rating
3.0 A
Brand Name
Ferraz Shawmut
Type
Supplemental Protection
Voltage Rating
500 VAC
