AU-2/0 ILS

Name: AU-2/0 ILS
Brand: Ilsco Corporation
SKU: AU-2/0 ILS
Price: 5.75 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Ilsco Corporation

Manufacturer part number:

AU-2/0

CBT Inventory

Vendor Inventory

Availability:

18 in stock

Estimated dates are contingent upon manufacturer stock.

$5.75 / EA

Description

Brand Name

ILSCO®

Type

2-Conductor Dual Rated

Description

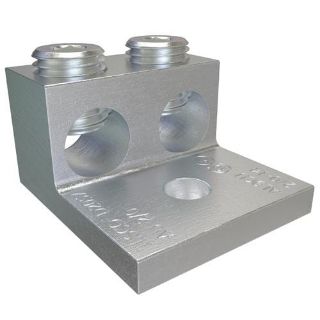

ILSCO® ClearChoice® Mechanical Terminal Lug, 2-Conductor Dual Rated, Series: AU Series, Aluminum/Copper Conductor, 14 to 2/0 AWG Conductor, 1/4 in Stud, 2 Bolt Holes, 0.844 in L x 1.25 in W x 0.187 in THK Tongue, Straight Tongue, 2000 VAC, 3/16 in Hex, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 1.4688 in L x 1.25 in W x 0.794 in H

Application

Terminating Connector Applications

Standards

CSA File No. LR-29601 | UL 453G | UL 486A-B File No. E6207 | ECCN EAR99

Features

Manufactured from high strength 6061-T6 aluminum alloy
Chamfered wire entry provides ease of installation
Suitable for use with either copper or aluminum conductors
Mounting hole spacing from side to side, hole to hole is 7/8 in
Electro-tin plated provides low contact resistance
Ensures reliability for copper or aluminum conductors
Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
Application versatility
1-stud
17/64 in mounting hole

Specifications

Conductor Size:	14 to 2/0 AWG
Conductor Type:	Aluminum/Copper
Country of Origin:	MX
Dimensions:	1.4688 in L x 1.25 in W x 0.794 in H
Finish:	Electro-Plated Tin
Material:	6061-T6 Aluminum Alloy
Number of Bolt Holes:	2
Series:	AU Series
Specifications:	3/16 in Hex
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.844 in L x 1.25 in W x 0.187 in THK
Tongue Type:	Straight
Voltage Rating:	2000 VAC
