AU84X4018BLP HOF

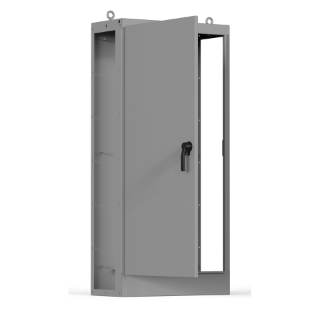

Picture of AU84X4018BLP HOF

Actual Product May Vary From Image

Product Details

Manufacturer:

Manufacturer part number:

AU84X4018BLP

Product Name:

AU84X4018BLP HOF

CBT Inventory

1

Vendor Inventory

Loading...

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

$3,712.00 / EA

Description

Type

Mild Steel Freestanding Industrial Enclosures

Description

Universal Free-Stand Both Sides Open, 84.13x39.76x18.11, Gray, Steel

Application

Arc Flash Safety; Power Distribution; Controls and Drives

Specifications

Body Thickness (Imperial):	11 ga
Body Thickness (Metric):	3.04 mm
Cable Entry:	No
Color:	Gray
Color Code:	ANSI 61
Conductive Panel:	A84PM40G
Connection:	Yes
Country of Origin:	MX
Cubic Capacity:	35 Cu-Ft
Cutout Type:	No Cutout
Depth:	18.11
Door Thickness (Imperial):	12 ga
Door Thickness (Metric):	2.66 mm
Finish:	Powder Coated
Harmonized Code:	9403200090
Height:	84.13
Insulation:	No
Material:	Mild Steel
Mounting:	Free Standing
NEMA Rating:	Type 4, 12, 3R
Number of Outlet:	2
Painted Panel:	A84PM40
Panel Size (Imperial):	72.00 x 33.75 in
Panel Size (Metric):	1829 x 857 mm
Protection Rating:	NEMA Type 4
Size:	84.13 x 39.76 x 18.11 inch
Weight (Imperial):	334.11 lb
Width:	39.76
