Actual Product May Vary From Image

AX22 GAT

Name: AX22 GAT
Brand: Gates Rubber
SKU: AX22 GAT
Price: 11.36 USD
Availability: InStock

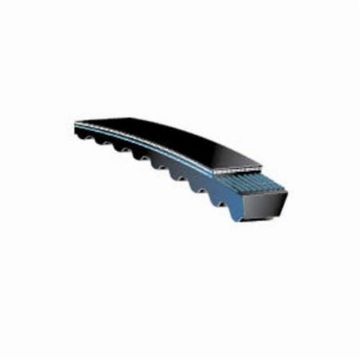

Gates® Tri-Power® V80® AX22 Heavy Duty V-Belt, 1/2 in W Top, 24 in L Outside, 5/16 in THK, AX Section, EPDM

Manufacturer: Gates Rubber

Manufacturer part number: AX22

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
7	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$11.36

Qty:

Product Details

Brand Name

Gates®

Type

Heavy Duty

Description

Constructed with Gates® proprietary construction, this belt has a superior combination of flex and load carrying capacity, as well as less stretch resulting in less maintenance.

Gates® Tri-Power® V80® V-Belt, Heavy Duty, Series: 9012, AX Section Size, 1/2 in Top Width, 24 in Outside Length, 5/16 in Thickness, 1 Ribs, -60 to 250 deg F, EPDM, Polyester Reinforced Material

Application

For all industrial applications

Standards

RMA Standard

Features

Notches molded into the belt during manufacturing make this belt well suited for drives with smaller diameter sheaves
Belt edge is machined for even sheave groove contact resulting in less slip and wear
Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
Patented EPDM Material construction provides -60 to 250 deg F temperature range to resist belt cracking
Suitable for all industrial applications, particularly where small or sub-minimal sheave diameters are required
Meets RMA oil and heat resistant standards
Meets RMA static conductivity requirements
Multi-duty recommended sheaves
ARPM number: AX22

Specifications

Country of Origin:	US
Material:	EPDM
Number of Ribs:	1
Outside Length:	24 in
Reinforced Material:	Polyester
Section Size:	AX
Series:	9012
Temperature Range:	-60 to 250 deg F
Thickness:	5/16 in
Top Width:	1/2 in
