Actual Product May Vary From Image

B173 GAT

Name: B173 GAT
Brand: Gates
SKU: B173 GAT
Price: 58.68 USD
Availability: InStock

Hi-Power™ II

Manufacturer: Gates

Manufacturer part number: B173

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
12	0	2
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$58.68

Qty:

Product Details

Brand Name

Gates

Alternate Supplier #

90032173

Description

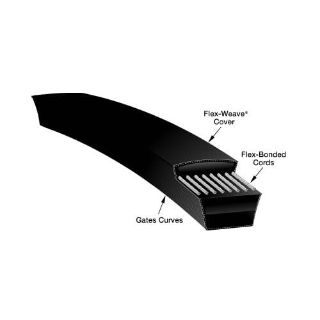

The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.

Features

Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear. Vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads. Flex-Weave™ oil and heat resistant cover protects the belt core from the toughest environments. All sizes meet Gates V80® system matching tolerances. Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.

Specifications

Angle:	40
Belt Back Side:	Smooth
Belt Inside:	Smooth
Belt/Slab:	Belt
Color:	Black
Construcao:	Banded
Cord Material:	Polyester
Country of Origin:	MX
Effective Length (in):	175.9
Effective Length (mm):	4468
GC Base Product:	Hi-Power® II Belts - B Section
Harmonized Tariff Code:	4010.39.1000
Material:	SBR
Max Temp (°C):	+60
Max Temp (F):	+140
Min Temp (°C):	-30
Min Temp (F):	-22
Number of Ribs/Strands:	1
OC (in):	176.1
OC (mm):	4473
Proposition 65:	NO
Secao:	B
Sided:	Single Sided
Static Conductive:	Yes
Thickness (in):	0.438
Thickness (mm):	11
Top Width (in):	0.688
Top Width (mm):	17
Unitset (V80):	Yes
