B197 GAT

Picture of B197 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Rubber
Manufacturer part number:
B197
product.name:
B197 GAT
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$69.69 / EA

Description

Brand Name

Gates®

Type

Banded Heavy Duty

Description

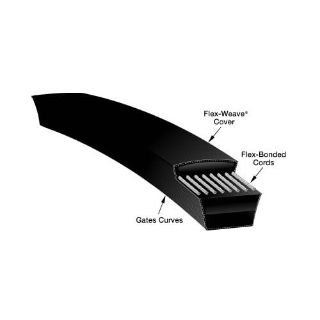

The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.
Gates® Hi-Power® II V-Belt, Banded Heavy Duty, Series: 9003, B Section, 21/32 in Top Width, 200 in Outside Length, 13/32 in Thickness, 1 Rib, 4.775 in Diameter Minimum Pulley, EPDM, Flex-Bonded Polyester Reinforced

Application

For all industrial applications, including V-flat drives

Standards

ARPM/RMA IP-3-2/IP-3-3

Features

  • Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
  • The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
  • Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
  • Featuring a composite, multi-purpose construction, these belts resist oil and heat, ozone, sunlight, weather and aging

Specifications

Country of Origin:MX
Material:EPDM
Minimum Pulley Diameter:4.775 in
Number of Ribs:1
Outside Length:200 in
Reinforced Material:Flex-Bonded Polyester
Section Size:B
Series:9003
Thickness:13/32 in
Top Width:21/32 in

Products Specifications

Brand Name
Gates

Customers who bought this item also bought

Picture of 5VX1400 GAT

5VX1400 GAT

MFG: Gates Rubber
MFG#:5VX1400
Info:Gates® Super HC® 5VX1400 Heavy Duty Molded Notch V-Belt, 5VX Section, 5/8 in W Top, 140 in L Outside, 35/64 in THK, EPDM
ATTENTION: This item is subject to a price increase beginning 01/2025. Contact your Account Manager for specific details.
$ -.--

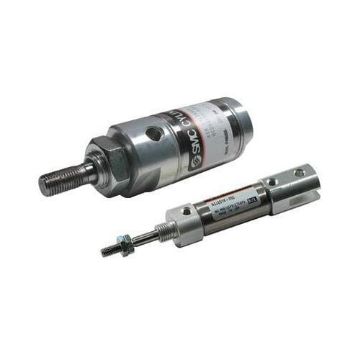

Picture of NCMB150-0200 SMC
