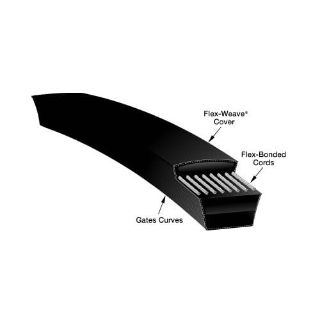

Picture of B82 GAT
Actual Product May Vary From Image

B82 GAT

Gates® Hi-Power® II B82 Banded Heavy Duty V-Belt, B Section, 21/32 in W Top, 85 in L Outside, 13/32 in THK, EPDM
Manufacturer: Gates Rubber
Manufacturer part number: B82
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
4 5 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 6
Loading...
$28.62

Product Details

Brand Name

Gates®

Type

Banded Heavy Duty

Description

The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.
Gates® Hi-Power® II V-Belt, Banded Heavy Duty, Series: 9003, B Section, 21/32 in Top Width, 85 in Outside Length, 13/32 in Thickness, 1 Rib, 4.775 in Diameter Minimum Pulley, EPDM, Flex-Bonded Polyester Reinforced

Application

For all industrial applications, including V-flat drives

Standards

ARPM/RMA IP-3-2/IP-3-3

Features

  • Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
  • The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
  • Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
  • Featuring a composite, multi-purpose construction, these belts resist oil and heat, ozone, sunlight, weather and aging

Specifications

Country of Origin:MX
Material:EPDM
Minimum Pulley Diameter:4.775 in
Number of Ribs:1
Outside Length:85 in
Reinforced Material:Flex-Bonded Polyester
Section Size:B
Series:9003
Thickness:13/32 in
Top Width:21/32 in
