B91 GAT

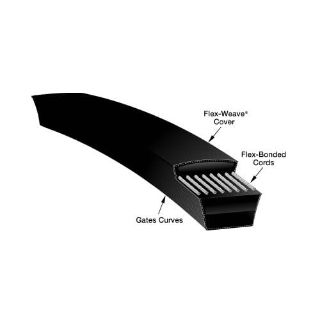

Picture of B91 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
B91
Product Name:
B91 GAT
CBT Inventory
21
Vendor Inventory
Loading...
CBT - Cincinnati
17
CBT - Springboro
2
CBT - Sidney
2
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$31.22 / EA

Description

Brand Name

Gates®

Type

Banded Heavy Duty

Description

The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.
Gates® Hi-Power® II V-Belt, Banded Heavy Duty, Series: 9003, B Section, 21/32 in Top Width, 94 in Outside Length, 13/32 in Thickness, 1 Rib, 4.775 in Diameter Minimum Pulley, EPDM, Flex-Bonded Polyester Reinforced

Application

For all industrial applications, including V-flat drives

Standards

ARPM/RMA IP-3-2/IP-3-3

Features

  • Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
  • The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
  • Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
  • Featuring a composite, multi-purpose construction, these belts resist oil and heat, ozone, sunlight, weather and aging

Specifications

Country of Origin:MX
Material:EPDM
Minimum Pulley Diameter:4.775 in
Number of Ribs:1
Outside Length:94 in
Reinforced Material:Flex-Bonded Polyester
Section Size:B
Series:9003
Thickness:13/32 in
Top Width:21/32 in

Products Specifications

Brand Name
Gates

Customers who bought this item also bought

Picture of 6000 ZZ NAC

6000 ZZ NAC

MFG: Nachi Bearings
MFG#:6000ZZEC3
Info:NACHI 6000ZZEC3 Deep Groove Ball Bearing, 10 mm Dia Bore, 26 mm OD, 1 Rows, 8 mm W, 4550 N Dynamic/1970 N Static Load
$ -.--

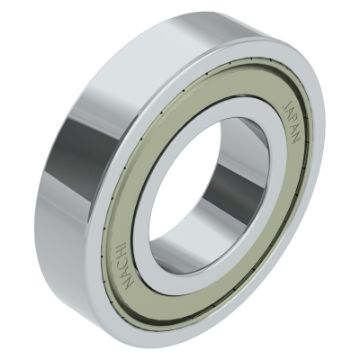

Picture of 6003 ZZ NAC
