BK34 5/8 AD

Name: BK34 5/8 AD
Brand: IDC-USA
SKU: BK34 5/8 AD
Price: 28.60 USD
Availability: InStock

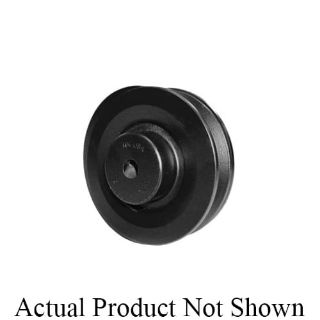

Actual Product May Vary From Image

Product Details

Manufacturer:

IDC-USA

Manufacturer part number:

IDC BK034-5/8

Product Name:

BK34 5/8 AD

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$28.60 / EA

Description

Brand Name

IDC Select®

Type

Light Duty Type 2

Description

IDC Select® light duty bored-to-size sheaves are available in single and two groove designs for A-B and 3L-4L-5L belts. Each unit is supplied with a keyway and a set screw over the keyway. They are precision machined from 25 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® Single Groove Sheave, Light Duty Type 2, Bored to Size Bore, 5/8 in Bore Dia, 3.55 in Outside Dia, 3.2 in, 7/8 in Face Width, 13/32 in Hub Projection, For Use With: 4L/A and 5L/B Cross Section V-Belts, Class 25 Cast Iron, Baked Enamel

Application

Air Handling, Mining, Wood Process, Agriculture, Aggregate, Oilfield, Air Compressor and Industrial Applications

Standards

ASTM Specified | SAE Standard

Features

Precision machined from gray cast iron
Statically balanced
Cast iron sheaves should not exceed 6500 fpm rim speed
Special or dynamic balancing should be considered when speeds exceed 5000 fpm
2.8 in Dia pitch 4L/3.2 in Dia pitch 5L(B)

Specifications

Bore Diameter:	5/8 in
Bore Type:	Bored to Size
Face Width:	7/8 in
Finish:	Baked Enamel
Hub Projection:	13/32 in
Material:	Class 25 Cast Iron
Outside Diameter:	3.55 in
Pitch Diameter:	3.2 in
Suitable For Use With:	4L/A and 5L/B Cross Section V-Belts
