BK75H AD

Name: BK75H AD
Brand: IDC-USA
SKU: BK75H AD
Price: 55.17 USD
Availability: InStock

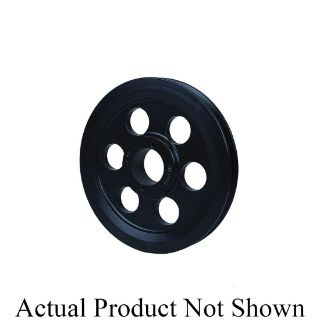

Actual Product May Vary From Image

Product Details

Manufacturer:

IDC-USA

Manufacturer part number:

IDC BK075H

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$55.17 / EA

Description

Brand Name

IDC Select®

Type

Light Duty Type 3

Description

IDC Select® light duty H bushed sheaves are available in A section single and two groove design and B section single, two groove and three groove designs for A-B and 3L-4L-5L belts. Each unit comes designed to be compatible with the H design bushing. They are precision machined from 25 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® Single Groove Sheave, Light Duty Type 3, 7-1/4 in OD, 6.9 in Pitch Diameter, 7/8 in Face Width, H Bushing, 1-9/16 in Overall Length, For Use With: 4L/A and 5L/B Cross Section V-Belts, Class 25 Cast Iron, Baked Enamel

Application

Air Handling, Mining, Wood Process, Agriculture, Aggregate, Oilfield, Air Compressor and Industrial Applications

Standards

ASTM Specified | SAE Standard

Features

Precision machined from gray cast iron
Statically balanced
Cast iron sheaves should not exceed 6500 fpm rim speed
Special or dynamic balancing should be considered when speeds exceed 5000 fpm
6.5 in Dia pitch 4L(A)/6.9 in Dia pitch 5L(B)

Specifications

Bushing Type:	H
Face Width:	7/8 in
Finish:	Baked Enamel
Material:	Class 25 Cast Iron
Outside Diameter:	7-1/4 in
Overall Length:	1-9/16 in
Pitch Diameter:	6.9 in
Suitable For Use With:	4L/A and 5L/B Cross Section V-Belts
