BK/PCC-3-R BSF

Product Details

Manufacturer:
Manufacturer part number:
BK/PCC-3-R
CBT Inventory
80
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
80
CBT - LEXINGTON
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Bussmann

Type

Board Washable Fast Acting Sub-Miniature

Description

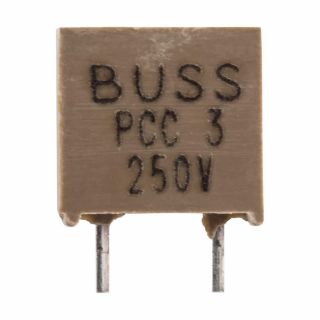

Bussmann Fast Acting Fuse, Subminiature, 3 A, 250 VAC, 4 hr at 100% Response, 0.29 in H x 0.3 in W x 0.095 in D Body Size

Application

High Voltage DC Applications

Standards

RoHS 2002/95/EC | UL File No. E19180 Recognized | CSA 42731

Features

Dimensions: .3 in W x .095 in D x .29 in H

Specifications

Amperage Rating:3 A
Body Size:0.29 in H x 0.3 in W x 0.095 in D
Country of Origin:US
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:50 A, 300 to 4400 A
Mounting Type:PC Board/Through Hole
Response Time:10 s, 4 hr
Series:PCC
Terminal Type:Radial Lead
Voltage Rating:250 VAC
