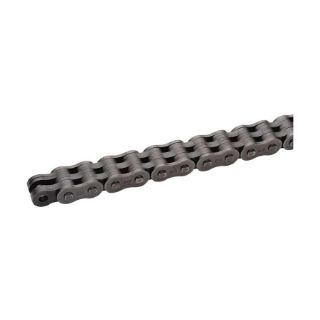

Actual Product May Vary From Image

BL644RB UST

Name: BL644RB UST
Brand: US Tsubaki
SKU: BL644RB UST
Price: 86.80 USD
Availability: OutOfStock

Tsubaki® BL644RB BL Series Leaf Chain, 10 ft OAL, 3/4 in Pitch, Steel

Manufacturer: US Tsubaki

Manufacturer part number: BL644RB

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$86.80

Qty:

Product Details

Brand Name

Tsubaki®

Description

Leaf chains generally have greater tensile strength than roller chains and run over sheaves rather than sprockets. They are most often used as counterweight chains for machine tools, elevator and oven doors, fork lift truck masts, spinning frames and similar lifting or balancing applications.

Tsubaki® Leaf Chain, Series: BL Series, 3/4 in Pitch, 4 x 4 Lacing, 0.312 in Pin Dia, 1.284 in Pin Length, 0.713 in Plate Height, 0.126 in Plate Thickness, 2 Strands, 28700 lb Tensile, 10 ft Overall Length, Steel

Application

Machine Tools, Elevator and Oven Doors, Fork Lift Truck Masts, Spinning Frames and Similar Lifting or Balancing Applications

Standards

ANSI/ASME Specified

Features

The outside dimensions of the plates are the same as ANSI standard RS roller chain inner plates of the same pitch
The plate thickness is the same as one size up Tsubaki® RS roller chain
BL series can in most instances replace the older AL series leaf chains
Riveted pin construction

Specifications

Country of Origin:	CN
Lacing:	4 x 4
Material:	Steel
Number of Strands:	2
Overall Length:	10 ft
Pin Diameter:	0.312 in
Pin Length:	1.284 in
Pitch:	3/4 in
Plate Height:	0.713 in
Plate Thickness:	0.126 in
Series:	BL Series
Tensile Strength:	28700 lb
