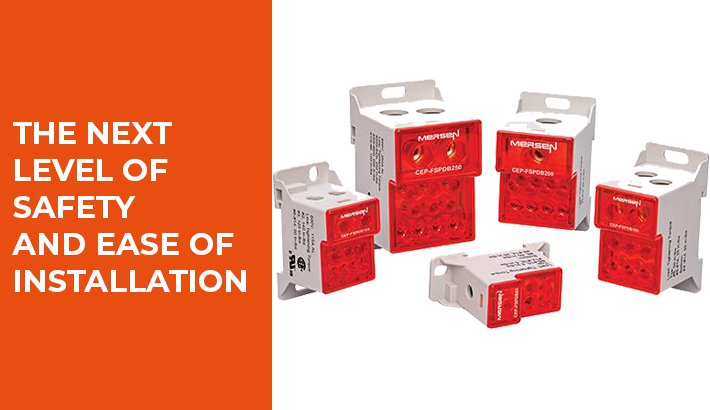

Finger safe IP20-rate Power Distribution Blocks from CBT partner, Mersen, are part of the new Compact EP line of products. The compact footprint allows space savings in panels, contributing to reduced panel size when compared to traditional power distribution blocks.
The Compact PDB is ideal for low voltage applications. Rated for UL-600V, ampere range of 85-250A, it can accomodate wire ranges AWG 18-3/0, catering to a wide range of low voltage applications. The PDBs can be DIN rail mounted, are dual wire rated, and are capable of DLO wire acceptance allowing ease of installation. Translucent covers allow visual inspection of wire termination points and wiring configurations.
Features/Benefits
- Finger-safe protection: Fully insulated block ensures touch-safe isolation of live parts. Recessed termination screws and wire openings provide IP20 grade protection and qualify as “fingersafe” per IEC 529. Transulcent cover allows for visual inspection of wire termination
- Compact modularity: Smaller footprint allows panel vuilders to reduce space and build smaller or higher density panels.
- Span on DIN-rail mounting: Integral DIN rail adaptors allow for quick and easy installations on 35mm DIN rail, yielding lower installed costs.
- Captive termination screws: Unique channel design ensures captive metric wire termination screws. Screws can never be lost.
- Multiple wire ratings: Blocks are multi wire rated and can accomodate 18AWG wire for low voltage applications such as LED lighting. Can also accept DLO wires.
Ratings:
- Volts: 600VAC/DC
- Amps: 85 to 250A
- SCCR: 600V or less, 100kA with proper fuse; over 600V, 10kA
Approvals:
- UL recognized:
- UL file #E73571
- CSA certified: Class 6228
Not all products shown may be available to you. Contact a CBT Specialist to learn more.
