BSN10-L PAN

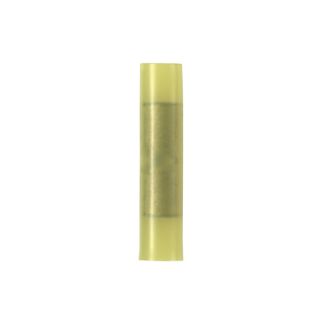

Picture of BSN10-L PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
BSN10-L
Product Name:
BSN10-L PAN
CBT Inventory
100
Vendor Inventory
Loading...
CBT - Cincinnati
100
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$1.70 / EA

Description

Brand Name

Panduit®

Type

Loose Piece Standard

Description

Panduit®, BSN10-L, Butt Splice, Type BSN Loose Piece, Solid/Stranded Copper Conductor, 12 to 10 AWG Conductor, 1.14 in Length, Brazed Seam/Butted/Standard Barrel, 0.21 in ID x 0.27 in OD Barrel, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.21 in Dia Maximum Nylon Insulation, 221 deg F, Yellow, TiN Coated, 1.14 in L x 0.27 in W Dimensions

Application

For limited space applications

Standards

ARRA Compliant | BAA Compliant | CSA C22.2 File No 65, File No LR31212 | RoHS Compliant | UL 486C | UL 587H File No E52164 | UL 94-HB Flammability Rated | Buy American Act Compliant

Features

  • Expanded wire entry designed to accommodate wire with a larger insulation thickness
  • Designed to splice two solid or stranded wires together to repair or lengthen wires
  • Internal wire stop assures proper length of insertion into terminal barrel
  • Butted configuration provides low profile for limited space applications
  • Brazed seam protects terminal barrel from splitting during the crimp process

Specifications

Barrel Size:0.21 in ID x 0.27 in OD
Barrel Type:Brazed Seam/Butted/Standard
Color:Yellow
Conductor Size:12 to 10 AWG
Conductor Type:Solid/Stranded
Country of Origin:MX
Dimensions:1.14 in L x 0.27 in W
Finish:TiN Coated
Length:1.14 in
Material:Copper
Series:BSN
Specifications:9/32 in L Wire Strip, 0.21 in Dia Maximum Nylon Insulation
Temperature Rating:221 deg F
Voltage Rating:600 VAC
